220V 3W SMD Non Maintained Emergency Lighting LED Emergency Downlight

220V 3W SMD Non Maintained Emergency Lighting LED Emergency Downlight

non maintained emergency lighting

220V emergency light

Place of Origin:

China

Brand Name:

Zhui Ming

Certification:

CE

Model Number:

EL1-1AN

Contact Us

Request A Quote
Product Details
Operation:
Non-maintained
Lamp Used:
1*1W SMD White LED
Battery:
Ni-Cad 3.6V 1.0Ah
Construction:
Electro-galvanized Steel Casing,PC Plate
IP Rating:
IP42
Warranty:
3years
Duration Time:
>3hrs
Usage:
Fire Fighting Safety Emergency
Input Voltage:
110-127V,220-240V
Package:
20PCS/45*37*25CM/11.7KG/CTN
Payment & Shipping Terms
Minimum Order Quantity
300PCS
Packaging Details
1 Set in 1 Inner Carton,20 sets in 1 Master Carton
Delivery Time
35 Days after Deposit
Supply Ability
3000PCS/DAY
Product Description

220V 3W SMD Non Maintained Emergency Lighting LED Emergency Downlight



Product Specification

Operation

Non-maintained

Input Voltage

110V-127V 50/60Hz; 220V-240V 50/60Hz

Charging Current

40mA(Nominal)

Lamp type

1 watt SMD White LED

Battery

Nickel-Cadmium Battery 3.6V 1.6Ah 1.0AH

Indicator

Red LED Indicates Charging

Duration Time

More than 3 hours

Construction

Electro-galvanized Steel Casing with Corrosion Resistant Epoxy Spray Coating; PC Plate

IP Rate

IP20

Installation

Ceiling Recessed Mounted

Weight

0.5 kg

Working Temperature

-10℃ to 60℃

Size

350mm×110mm×38mm

Tolerance ±0.03mm

Customization

Battery, Duration Time, Package, Wire length



Characteristics:

  • Power Supply Built-in
  • Easy Installation
  • High quality electronic components
  • High-quality battery
  • High brightness
  • Low power consumption
  • Warranty:3 years

Technical Parameters:

  1. Input Power: AC 220V-240V 50Hz / 60Hz
  2. Light source:3W high power LED
  3. Emergency time ≥180 minutes
  4. emergency conversion time ≤IS
  5. Emergency switching voltage: AC 144V-204V 50Hz / 60Hz
  6. Battery: Ni-Cd 3.6V / 1600mA
  7. Installing hole size: Ф75mm

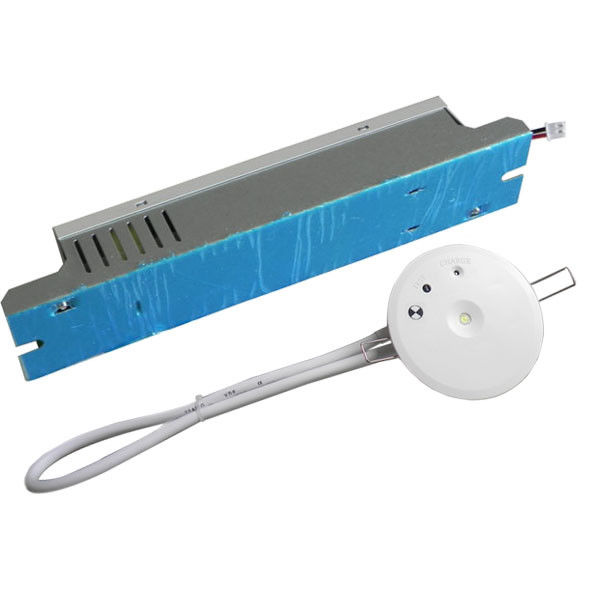

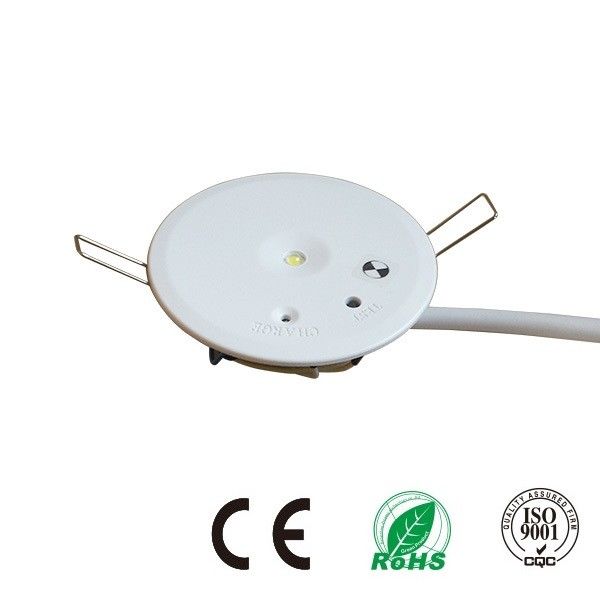

Produced Shows:220V 3W SMD  Non Maintained Emergency Lighting LED Emergency Downlight 0

Function:

When the AC power is turned on, light will be off, and charging indicator will be lit. At this time,if the TEST button is pressed, the lamp and the charge indicator are light (emergency function manual testing). When disconnecting the AC power supply, charging indicator does not light, light is lit.



Application



This product is mainly used in various types of buildings occurring sudden power outage, which can automatically supply emergency lighting . And it is mainly used for shopping malls, hotels and emergency exit of the corridor.



Certificate

CE,RoHS are  safe guarantee of our products.
