High Brightness Waterproof Emergency Twin Spot Light With 3 Years Warranty

High Brightness Waterproof Emergency Twin Spot Light With 3 Years Warranty

emergency twin spot light

twin head emergency light

Place of Origin:

Zhejiang

Brand Name:

Zhui Ming

Certification:

CE

Model Number:

TL084AN

Contact Us

Request A Quote
Product Details
Operation:
Non-maintained
Input Voltage:
110V-127V,50/60Hz;220V-240V,50/60Hz
Battery:
Ni-Cd 6V/4.5Ah
Duration Time:
More Than 3 Hours
Lamp Type:
2*42 Pcs 3014 SMD LED
Construction:
PC Casing And PC Diffuser
Installation:
Wall Surface Mounted
IP Rate:
IP65
Size:
280mm*133mm*320mm
Warranty:
3 Years
Payment & Shipping Terms
Minimum Order Quantity
300 sets
Packaging Details
1 set in 1 inner box,5 sets in 1 master carton
Delivery Time
45 days on receipt of the deposit
Payment Terms
T/T, Western Union, L/C
Supply Ability
3000 sets per day
Product Description

High Brightness Waterproof Emergency Twin Spot Light With 3 Years Warranty



Product Feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,our emergency light has high lumens,long lifetime, and low energy dissipation feature. The product has charge and discharge protection function, which makes the battery to achieve the best lifespan. What’s more, this product has been tested in a humid environment and can reach IP65 Rate.



Technical parameters:

  1. Power source: AC220V-240V 50/60Hz
  2. Lamp type: 2*42 SMD 3014 white LED
  3. Output power: ≤8W
  4. Emergency light duration time: ≥180mins
  5. Switching time: ≤IS
  6. Emergency switch voltage: AC134V-187V 50Hz/60Hz
  7. Battery specification: 6V/4500mAH


Specification:

Operation

Non-maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

120mA(Nominal)

Lamp type

2×42 pcs 3014 SMD LED

Battery

Nickel-Cadmium Battery 6V/4.5Ah

Indicator

Green LED Indicates Power On

Duration Time

More than 3 hours

Construction

PC Casing and PC Diffuser

IP Rate

IP65

Installation

Wall Surface Mounted

Weight

2.15 kg

Working Temperature

-10℃ to 55℃

Size

280mm×133mm×320mm

Customization

Battery, Duration Time, Package



Using instruction:

  • The products can be installed in outside, humid environment and the place does not have corrosive gas.
  • It should be single circuit line, please do not share the common return with other lights or any electrical appliance with switch, which makes sure the emergency light can charge at normal.
  • Please change the battery when the emergency time is less than rated time. Method: Cut off the Power, take out the products. Then open the upper cover, unplug the connection line between battery and circuit board, take off the battery, fasten the new battery in the original place and put the battery connector plug on the circuit board. After finish these step, please close up the cover, put the product in the original place and plug in.
  • Check and confirm the product work normally.
  • Installation size is according to mounting hole position of product back.
  • The product has been discharged when leave the factory. Please charge at least 20 hours before use, which can reach rated emergency time.
  • Please charge and discharge each 3 months after long term storage and stop using for products, it can protect the performance of the battery.

Product Show:

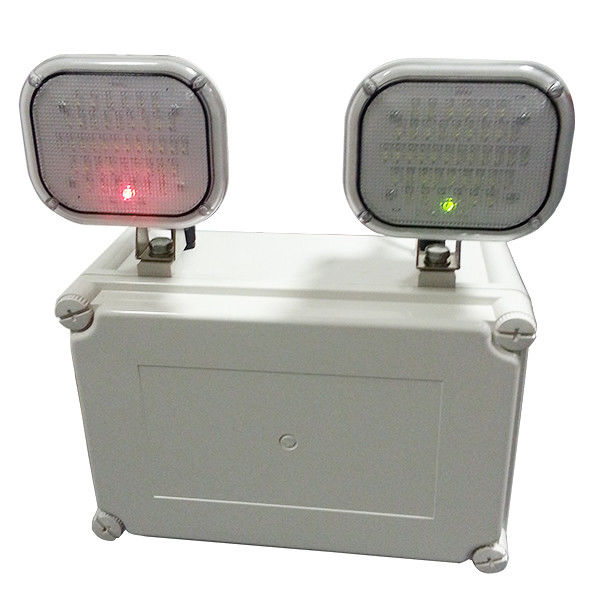

High Brightness Waterproof Emergency Twin Spot Light With 3 Years Warranty 0

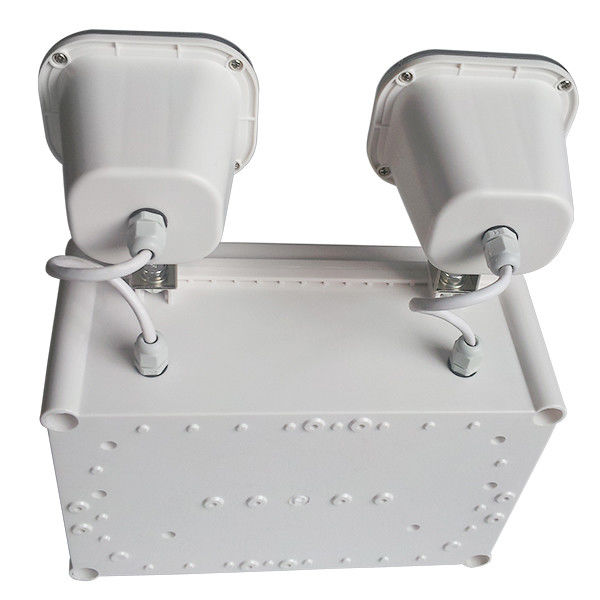

High Brightness Waterproof Emergency Twin Spot Light With 3 Years Warranty 1
