Place of Origin:
China
Brand Name:
Zhuiming
Certification:
CE
Model Number:
L109N-2
Contact Us

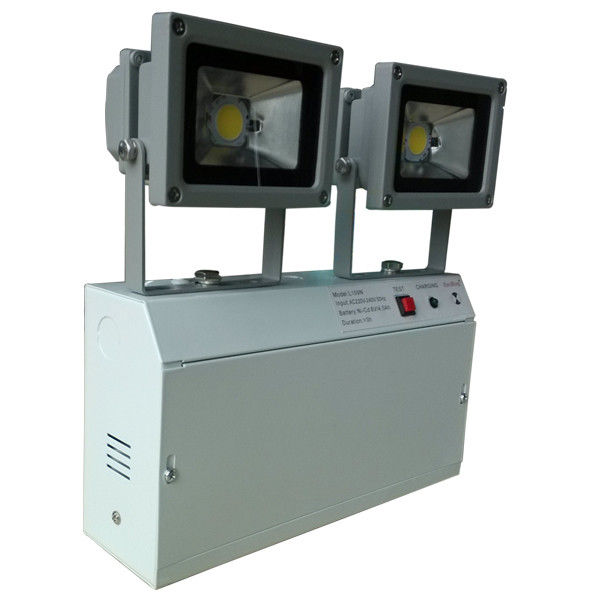

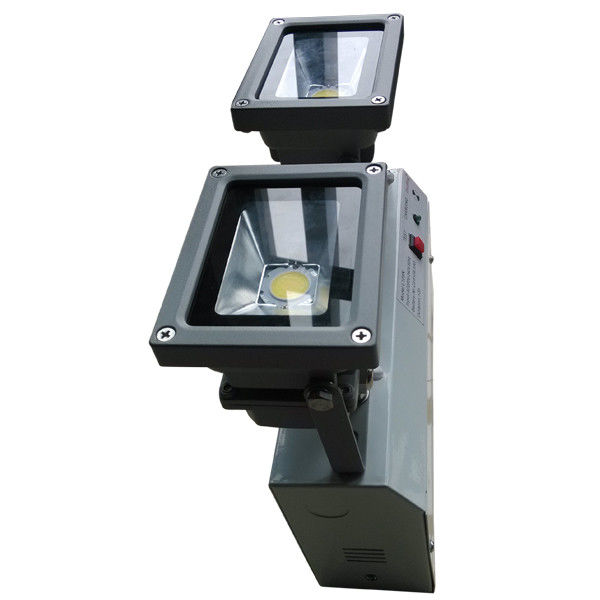

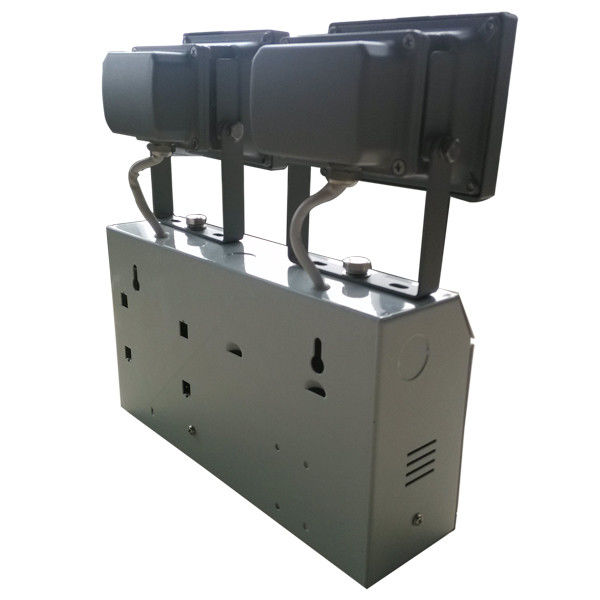

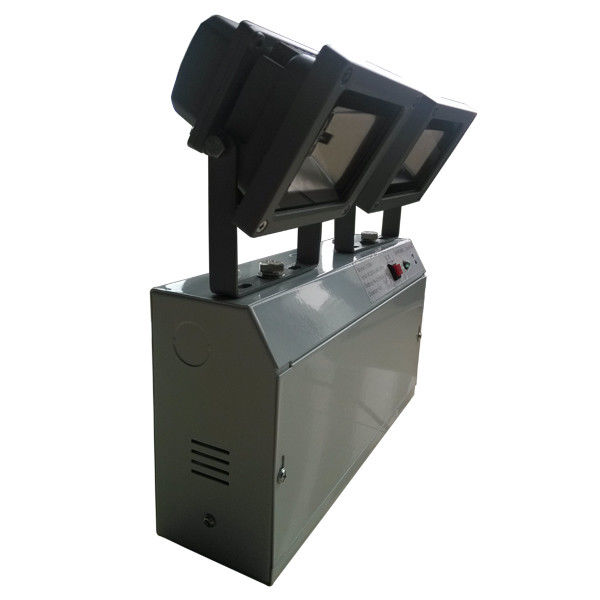

IP66 Twin Spot High Watts Emergency Lighting with our design for 3hours duration time
Overview
The product Self Test IP65 LED Non Maintained Emergency light with running man sticker is constructed from high quality Fire-Retardant ABS Casing and Plate, PC Diffuser that protects internal electrical components from moisture, rain, and snow.
The internal components and battery are completely sealed off from adverse weather to ensure reliable emergency illumination. The clear PC diffuser providing maximum light output. The IP65 rating ensures reliability even under the harshest conditions.
A powerful nickel-cadmium battery backup system provides at least 180 minutes of emergency light when AC power has been lost. The LED illumination used in this fixture is efficient. This illumination technology consumes power less than 1.5W. A nickel metal hydride battery is available for advanced power options.
Function
Over 3hrs emergency lighting after sudden power off.
Application
For shopping malls, office buildings, government buildings, teaching buildings, and so on.
Operation |
Non Maintained |
Input Voltage |
110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current |
120mA(Nominal) |
Lamp type |
2X10W COB led |
Battery |
SLA 12V 7Ah |
Indicator |
Green LED Indicates Charging |
Duration Time |
More than 3 hours |
Construction |
Electro-Galvanized Steel Casing |
IP Rate |
IP66 head lamp |
Installation |
Wall Surface Mounted |
Weight |
4.5 kg |
Working Temperature |
-10℃ to 55℃ |
Size |
272*85*288MM Tolerance ±0.03mm |
Customization |
Battery, Duration Time, Package |
Package Information
Package |
1 Set in 1 Inner Box, 5 Sets in 1 Outer Carton |
Outer Carton Size |
470mm×290mm×310mm |
Gross Weight |
25.5kg |
Net Weight |
22.5 kg |
