IP20 Test Button LED Emergency Ceiling Recessed Downlight Battery Rechargeable 3W

IP20 Test Button LED Emergency Ceiling Recessed Downlight Battery Rechargeable 3W

Emergency Ceiling Recessed Downlight LED

Rechargeable 3W LED Emergency Downlight

IP20 Test Button LED Emergency Downlight

Place of Origin:

China

Brand Name:

Zhui Ming

Certification:

CE

Model Number:

L104N-3

Contact Us

Request A Quote
Product Details
Operation:
Non-maintained
Lamp Used:
1*3W SMD White LED
Battery:
Ni-mH 3.6V 1.8Ah
Construction:
Electro-galvanized Steel Casing,PC Plate
IP Rating:
IP20
Warranty:
3years
Duration Time:
>3hrs
Usage:
Fire Fighting Safety Emergency
Input Voltage:
220-240V 50/60Hz
Package:
20PCS/45*37*25CM/11.7KG/CTN
Payment & Shipping Terms
Minimum Order Quantity
300PCS
Packaging Details
1 Set in 1 Inner Carton,20 sets in 1 Master Carton
Delivery Time
45 Days after Deposit
Supply Ability
3000PCS/DAY
Product Description

IP20 Test Button LED Emergency Battery Rechargeable 3W Ceiling Recessed Downlight



Product Specification

Operation

Non-maintained

Input Voltage

220V-240V 50/60Hz

Lamp type

1w /3w White LED

Battery

Nickel-mH Battery 3.6V 1.0Ah

/Ni-cad Battery 3.6V 1.8AH

Indicator

Red LED Indicates Charging

Duration Time

More than 3 hours

Construction

Electro-galvanized Steel Casing with Corrosion Resistant Epoxy Spray Coating; PC Plate

IP Rate

IP20

Installation

Ceiling Recessed Mounted

Weight

0.5 kg

Working Temperature

-10℃ to 55℃

Size

350mm×110mm×38mm

Tolerance ±0.03mm

Customization

Battery, Duration Time, Package, Wire length





Technical Parameters:

  1. Input Power: AC 220V-240V 50Hz / 60Hz
  2. Light source:3W high power LED
  3. Emergency time ≥180 minutes
  4. emergency conversion time ≤IS
  5. Emergency switching voltage: AC 144V-204V 50Hz / 60Hz
  6. Battery: Ni-mH 3.6V / 1600mA
  7. Installing hole size: Ф75mm

Operating Manual

  • Disconnect the AC power during installation.
  • This product should not be installed in places such as outdoors ,humid and corrosive gas and so on.
  • This product should use the separate loop-powered circuit.It should not share circuit with lighting or other electrical equipment (with a switch), in order to ensure this LED emergency Ceiling light can be recharged normally.
  • To ensure the product operating normally,it should be checked regularly.
  • The products have been discharged before leaving the factory.So it needs to be charged 24 hours when used .
  • If the product is in storage or not use for a long time, it should be charged and discharged once every three months, in order to protect the battery performance.
  • Please keep this manual.

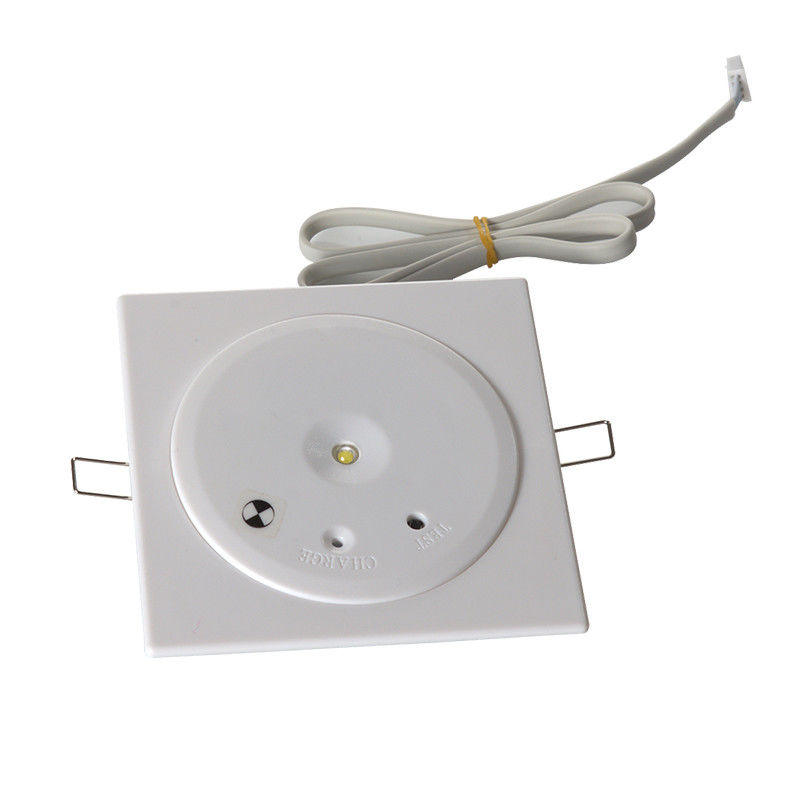

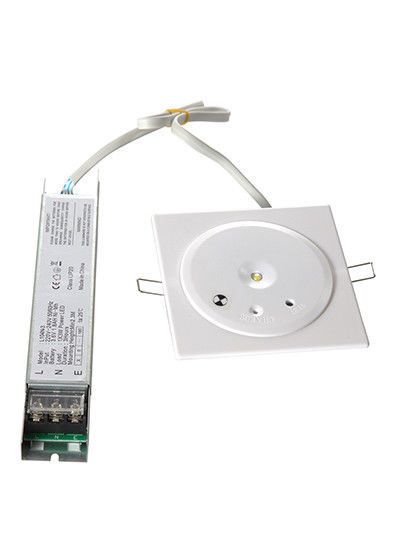

Product Show:



IP20 Test Button LED Emergency Ceiling Recessed Downlight Battery Rechargeable 3W 0
