Place of Origin:
Zhejiang (China)
Brand Name:
zhuiming
Certification:
CE
Model Number:
EL060AM
Contact Us
IP65 Rechargeable Waterproof Emergency Light 3 Hours Operation
Parameter:
Operation |
Maintained or Non-maintained |
Input Voltage |
110V-127V 50/60Hz;220V-240V 50/60Hz |
Charging Current |
120mA(Nominal) |
Lamp type |

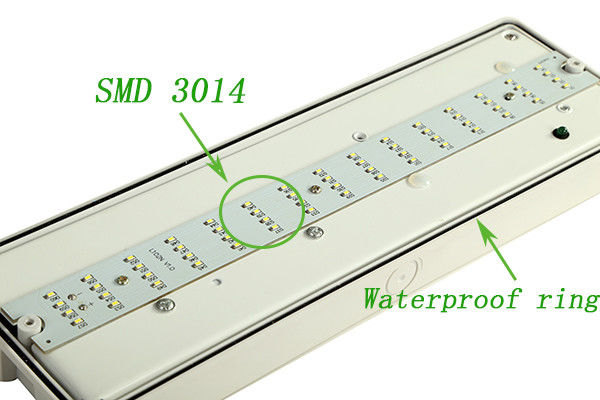

60 pcs SMD 3014 white LED |
Battery |
Nickel-Cadmium Battery 3.6V 3.0Ah |
Indicator |
Green LED Indicates Charging |
Duration Time |
More than 3 hours |
Construction |
Fire-Retardant ABS Casing and Plate; PC Diffuser |
IP Rate |
IP65 |
Installation |
Wall Surface Mounted, Ceiling Surface Mounted |
Weight |
0.683 kg |
Working Temperature |
-10℃ to 60℃ |
Size |
345mm×107mm×76mm |
Customization |
Battery, Duration Time, Package |
Packing and Shipping:
Package |
1 Set in 1 Inner Box, 10 Sets in 1 Outer Carton |
Outer Carton Size |
450mm×370mm×260mm |
Gross Weight |
8.45 kg |
Net Weight |
6.83 kg |
Application:
This product is mainly used in various types of buildings occurring sudden power outage,which can automatically supply emergency lighting . And it is mainly used for shopping malls, hotels and emergency exit of the corridor.
Operation:
Non-maintained Condition:
When there is power ON,the lamp is off .And it is charging ,the Green LED indicator is on . The emergency light will light on 180 minutes when there is power off , meanwhile the Green LED indicator is off .
Maintained Condition:
When there is AC power ON,the lamp is ON , it is charging ,and the Green LED Indicator also is on.When there is AC power OFF, the lamp will go on about 180 minutes, and the Green LED indicator is OFF.

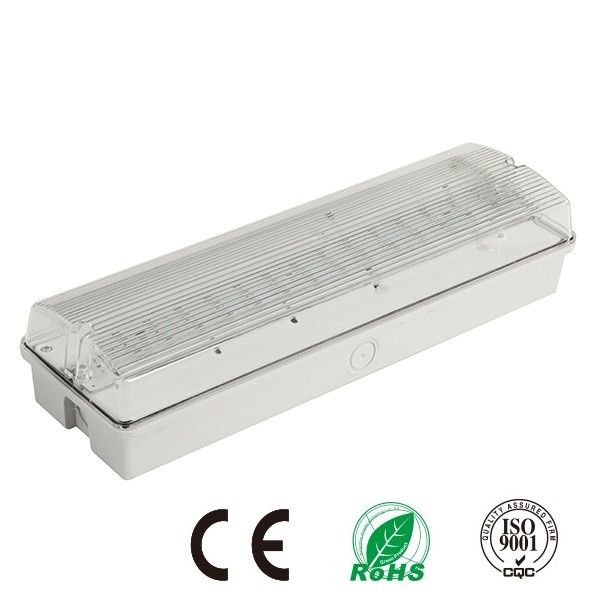

Product Show:
