Place of Origin:
China (Mainland)
Brand Name:
zhuiming
Certification:
CE
Model Number:
L116N-E
Contact Us
Energy Saving LED Rechargeable Emergency Exit Sign Ni-Cd Battery Emergency Exit Light
Product Specification
|
Operation |
Maintained |
|
Input Voltage |
220V-240V 50/60Hz |
|
Charging Current |
120mA(Nominal) |
|
Lamp type |
6pcs 5730 SMD LED |
|
Battery |
Nickel-Cadmium Battery 3.6V 1.8Ah |
|
Indicator |
Red LED Indicates Charging |
|
Duration Time |
More than 3 hours |
|
Construction |
Fire-Retardant ABS Casing and PS Diffuser |
|
IP Rate |
IP20 |
|
Installation |
Ceiling Recessed Mounted |
|
Weight |
0.68kg |
|
Working Temperature |
-10℃ to 50℃ |
|
Size |
265mm×105mm×140mm Tolerance ±0.03mm |
|
Customization |
Battery, Duration Time, Package |
Package Information
|
Package |
1 Set in 1 Inner Box,10 Sets in 1 Outer Carton |
|
Outer Carton Size |
550mm×260mm×310mm |
|
Gross Weight |
15 kg |
|
Net Weight |
20 kg |
Operation:
Non-maintained Condition:
When there is power ON,the lamp is off .And it is charging ,the Green LED indicator is on . The emergency light will light on 180 minutes when there is power off , meanwhile the Green LED indicator is off .
Maintained Condition:
When there is AC power ON,the lamp is ON , it is charging ,and the Green LED Indicator also is on .When there is AC power OFF, the lamp will go on about 180 minutes, and the Green LED indicator is OFF.

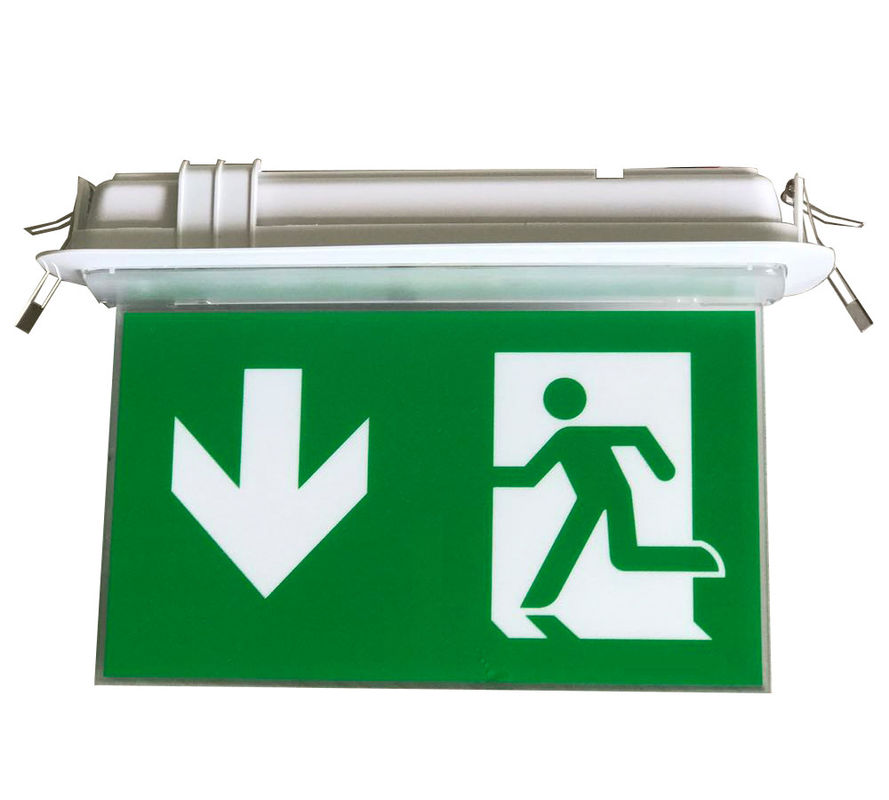

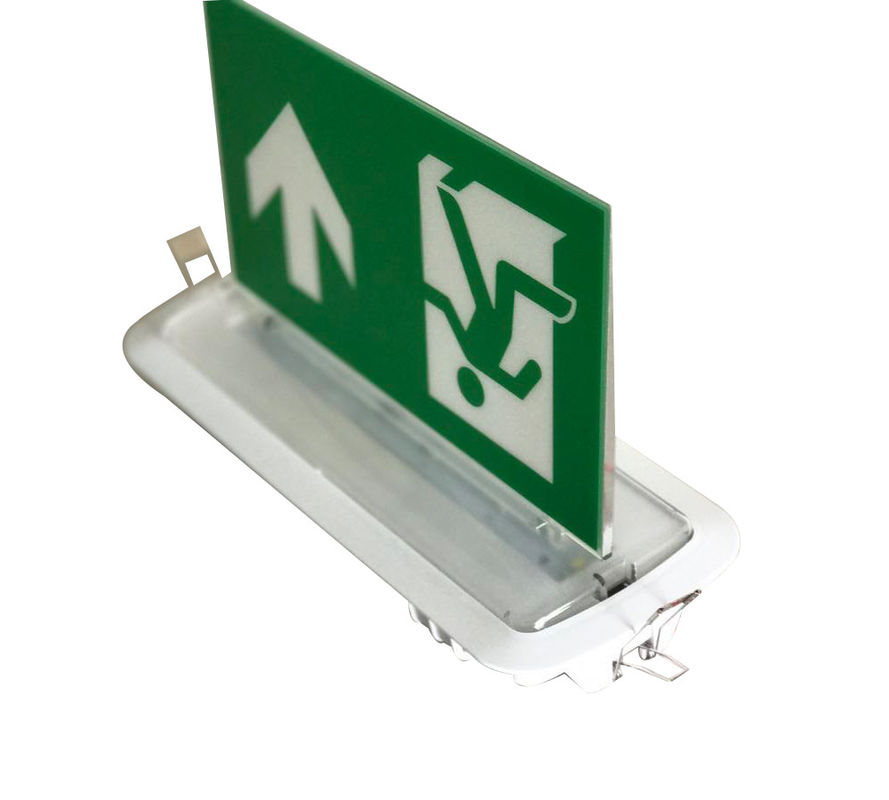

Product Picture:
