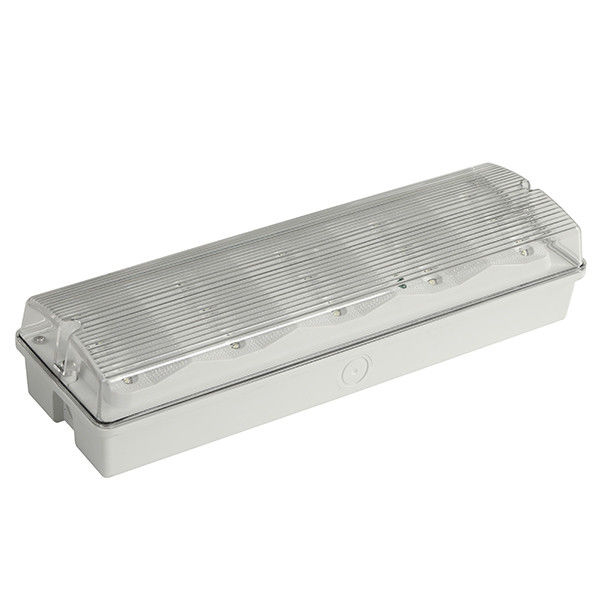

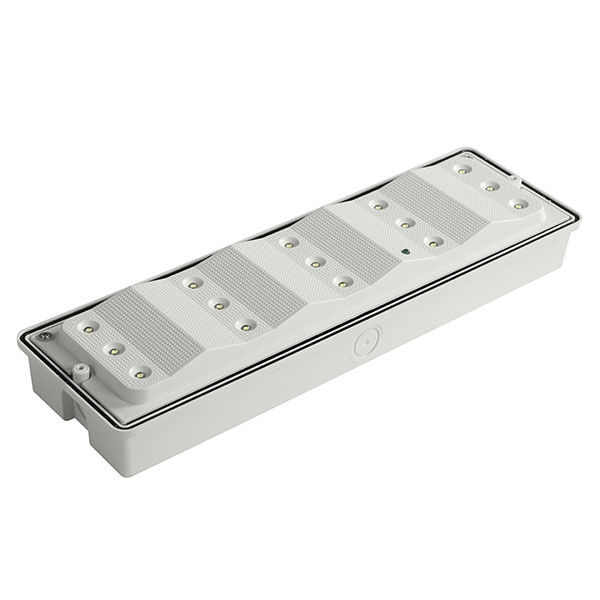

Safety IP65 Waterproof Emergency Light , LED Bulkhead Emergency Light

Safety IP65 Waterproof Emergency Light , LED Bulkhead Emergency Light

led light conversion kits

emergency light conversion kit

IP65 Waterproof Safety Emergency Light

Place of Origin:


Brand Name:

Zhui Ming



Model Number:


Contact Us

Request A Quote
Product Details
Non Maintained Or Maintained
Lamp Used:
15 Pcs DIP White LED
Fire-Retardant ABS Casing And Plate; PC Diffuser
IP Rate:
IP 65
3 Years
>3 Hours
Fire Fighting Safety Emergency
Payment & Shipping Terms
Minimum Order Quantity
300 PCS
Packaging Details
1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton
Delivery Time
35 Days after deposit
Supply Ability
3000 PCS/DAY
Product Description

CE ROHS Approved IP65 Waterproof Led Emergency Light With Auto Test



IP65 Waterproof Led Bulkhead Emergency Light With 3 Years Warranty

Product Description



Non Maintained or Maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current


Lamp type

15 pcs DIP white LED


Nickel-Cadmium Battery 3.6V 0.6Ah


Red LED Indicates Charging

Duration Time

More than 3 hours


Fire-Retardant ABS Casing and Plate; PS Diffuser

IP Rate



Wall Surface Mounted, Ceiling Surface Mounted



Working Temperature

-10°C to 55°C


Tolerance ±0.03mm


Battery, Duration Time, Package


 Safety IP65 Waterproof Emergency Light , LED Bulkhead Emergency Light 0


Safety IP65 Waterproof Emergency Light , LED Bulkhead Emergency Light 1




Packaging & Shipping



1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton

Mater Carton Size


Gross Weight

8.45 kg

Net Weight

6.83 kg




Our Services
  1. Warranty: 3 years
  2. Indicator: red or green can be selected
  3. Operation mode, Duration time, Battery type, Products' appearance can be customized
  4. We do not offer free samples but will reimburse the buyer once an order is confirmed.



Company Information
  • Business Type: Manufacturer, Trading Company
  • Location : Zhejiang, China (Mainland)
  • Years Established: 2008
  • Specialize in Emergency Light & Exit Sign for 5 years
  • Fast delivery:30 Working days
  • OEM and Special packing, like color box, industrial box, or as per customer's requirements.
  • CE, RoHS are safe guarantee of our products
  • 3 development engineers for products make us have strong R&D Capability

Self Test Function
      1. Indicator status without test button operation

Indicator Performance Means Status
Red  Lit Charging
Green Lit Fully charged
  Slow Blink(1Hz) Manual check mode
  Blink(3Hz) Automatic monthly self-check mode
  Quick blink(5Hz) Automatic annual self-check mode
Yellow  Lit Battery aging, or too short emergency time
  Slow blink(1Hz) Battery is in short circuit or open circuit
  blink(3Hz) Wrong connection with lamps or not matchable lamps
Off   Emergency or stop working conditio


2.Test Button Operation and Indicator Status

Press Time Indicator Status Check mode
<1S No reaction None. To avoid mistakenly operating
1~3s Slow blink (1Hz) in green check mode and discharge for 5 seconds
3~5s blink(3Hz) in green monthly self-check mode and discharge for 2 mins
  Quick blink(5Hz) in green annual self-check mode and discharge for 1 hour
>7s   Stop discharging to recharge again
