Hangzhou Dreamy Technology Co.,Ltd

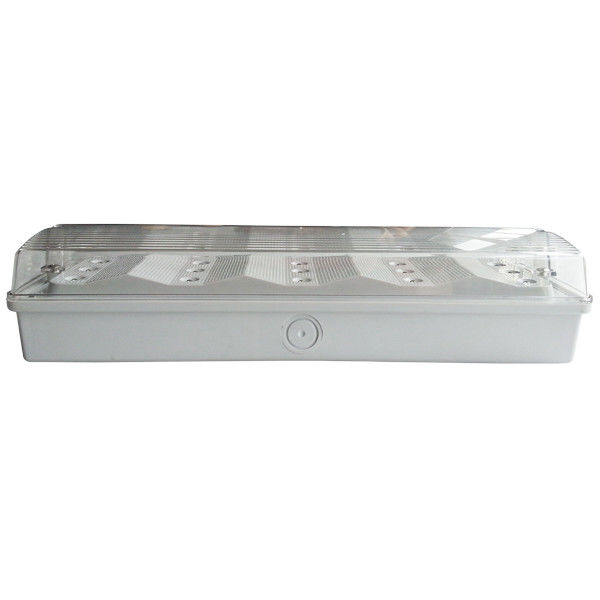

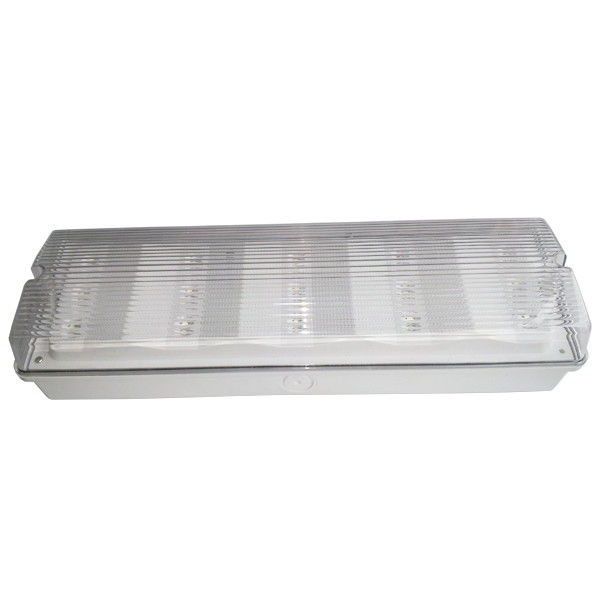

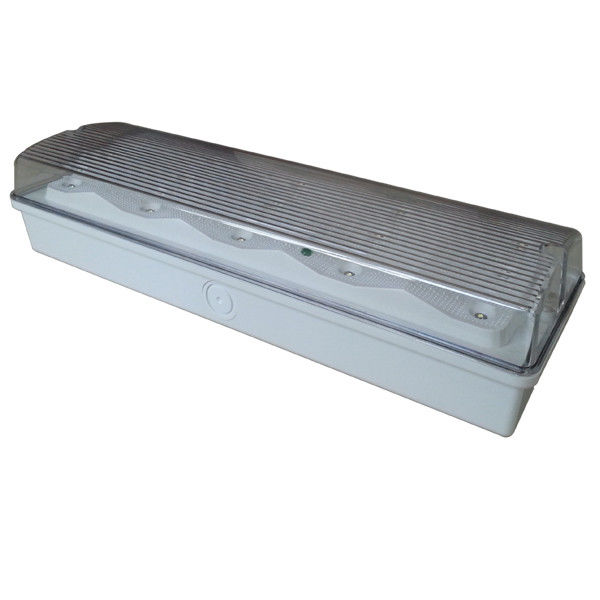

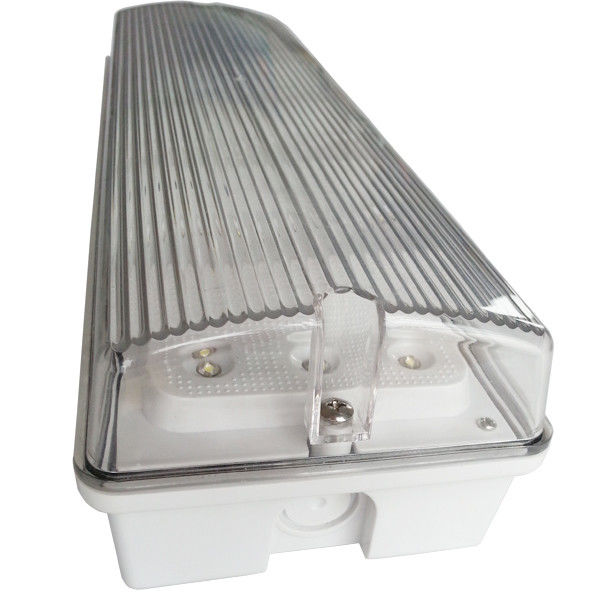

External Small Waterproof Emergency Light Non Maintained 345mm×118mm×80mm

Product Details:
Place of Origin: China
Brand Name: Zhui Ming
Certification: CE
Model Number: EL015ANTI
Payment & Shipping Terms:
Minimum Order Quantity: 300 PCS
Packaging Details: 1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton
Delivery Time: 35 Days after deposit
Supply Ability: 3000 PCS/DAY
  • Detail Information
  • Product Description

Detail Information

Operation: Non Maintained Lamp Used: 15 Pcs DIP White LED
Battery: Nickel-Cadmium Construction: Fire-Retardant ABS Casing And Plate; PC Diffuser
IP Rate: IP 65 Warranty: 3 Years
Duration: >3 Hours Usage: Fire Fighting Safety Emergency
High Light:

led emergency conversion kit


led light conversion kits

Product Description

IP65 Waterproof Wall Mounted Emergency Light With Self Test Function

Product Description



Non Maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current


Lamp type

15 pcs DIP white LED


Nickel-Cadmium Battery 3.6V 0.6Ah


Red LED Indicates Charging

Duration Time

More than 3 hours


Fire-Retardant ABS Casing and Plate; PS Diffuser

IP Rate



Wall Surface Mounted, Ceiling Surface Mounted



Working Temperature

-10°C to 55°C


Tolerance ±0.03mm


Battery, Duration Time, Package

External Small Waterproof Emergency Light Non Maintained 345mm×118mm×80mm 0
External Small Waterproof Emergency Light Non Maintained 345mm×118mm×80mm 1
External Small Waterproof Emergency Light Non Maintained 345mm×118mm×80mm 2


Packaging & Shipping



1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton

Mater Carton Size


Gross Weight

8.45 kg

Net Weight

6.83 kg



Our Services
  1. Warranty: 3 years
  2. Indicator: red or green can be selected
  3. Operation mode, Duration time, Battery type, Products' appearance can be customized
  4. We do not offer free samples but will reimburse the buyer once an order is confirmed.



Company Information
  • Business Type: Manufacturer, Trading Company
  • Location : Zhejiang, China (Mainland)
  • Years Established: 2008
  • Specialize in Emergency Light & Exit Sign for 5 years
  • Fast delivery:30 Working days
  • OEM and Special packing, like color box, industrial box, or as per customer's requirements.
  • CE, RoHS are safe guarantee of our products
  • 3 development engineers for products make us have strong R&D Capability

Self Test Function
      1. Indicator status without test button operation

Indicator Performance Means Status
Red  Lit Charging
Green Lit Fully charged
  Slow Blink(1Hz) Manual check mode
  Blink(3Hz) Automatic monthly self-check mode
  Quick blink(5Hz) Automatic annual self-check mode
Yellow  Lit Battery aging, or too short emergency time
  Slow blink(1Hz) Battery is in short circuit or open circuit
  blink(3Hz) Wrong connection with lamps or not matchable lamps
Off   Emergency or stop working conditio


2.Test Button Operation and Indicator Status

Press Time Indicator Status Check mode
<1S No reaction None. To avoid mistakenly operating
1~3s Slow blink (1Hz) in green check mode and discharge for 5 seconds
3~5s blink(3Hz) in green monthly self-check mode and discharge for 2 mins
  Quick blink(5Hz) in green annual self-check mode and discharge for 1 hour
>7s   Stop discharging to recharge again
