IP20 Ceiling Recessed Emergency Light Battery Operated Emergency Lighting

IP20 Ceiling Recessed Emergency Light Battery Operated Emergency Lighting

Power Failure Emergency Light

led bulkhead emergency light

Ceiling Recessed Emergency Light IP20

Place of Origin:

CN;ZHE

Brand Name:

ZhuiMing

Certification:

CE , RoHS

Model Number:

EL1*3AN-S

Contact Us

Request A Quote
Product Details
Operation:
Non-Maintained
Input Voltage:
110V-127V 50/60Hz; 220V-240V 50/60Hz
Charging Current:
40mA (Nominal)
Lamp Type:
3W SMD White LED
Battery:
Ni-mH Battery 3.6V 1.6Ah
Indicator:
Red LED Indicates Charging
Duration Time:
> 3 Hrs
Construction:
Electro-galvanized Steel Casing; PC Plate
IP Rate:
IP20
Installation:
Ceiling Recessed Mounted
Weight:
0.6kg
Working Temperature:
-10ºC To 55ºC
Size:
350mm×110mm×38mm Tolerance ±0.03mm
Customization:
Battery, Duration Time, Package, Wire Length
Payment & Shipping Terms
Minimum Order Quantity
300pcs
Packaging Details
1 Set in 1 Inner Box, 10 Sets in 1 Outer Carton
Delivery Time
25-35 days on receipt of your payments
Payment Terms
L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability
50,000pcs/Month
Product Description

Ceiling Emergency Light, Recessed Emergency LED Lighting in China









 Function

Over 3hrs emergency lighting after sudden blackout



Application

For shoping malls, office buildings,goverment buildings, teaching buildings, residential buildings, hospitals, dormitories and so on.



Certificate

Guaranteed by CE and RoHS




PRODUCT SPECIFICATION

Operation

   Non-Maintained

Input Voltage

   110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

   40mA(Nominal)

Lamp type

   3W SMD White LED

Battery

   Ni-mH Battery 3.6V 1.6Ah

Indicator

   Red LED Indicates Charging

Duration Time

   > 3 hrs

Construction

  Electro-galvanized Steel Casing; PC Plate

IP Rate

   IP42

Installation

   Ceiling Recessed Mounted

Weight

   0.6kg

Working Temperature

   -10ºC to 55ºC

Size

   350mm×110mm×38mm

   Tolerance ±0.03mm

Customization

   Battery, Duration Time, Package, Wire Length


PACKAGE

Package    1 Set in 1 Inner Box, 20 Sets in 1 Outer Carton
Outer Carton Size    450*370*250 mm
Gross Weight    11.7 kg
Net Weight    9.85 kg


DELIVERY TIME

   25-35 days on receipt of your payments


PRODUCT SHOWS

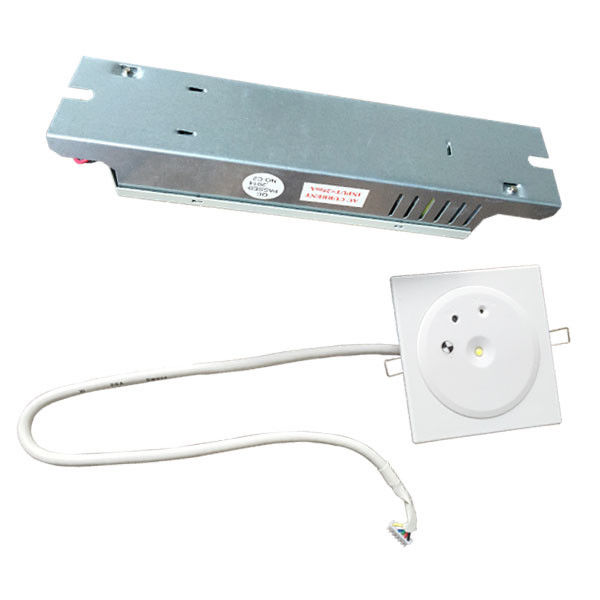

IP20 Ceiling Recessed Emergency Light Battery Operated Emergency Lighting 0

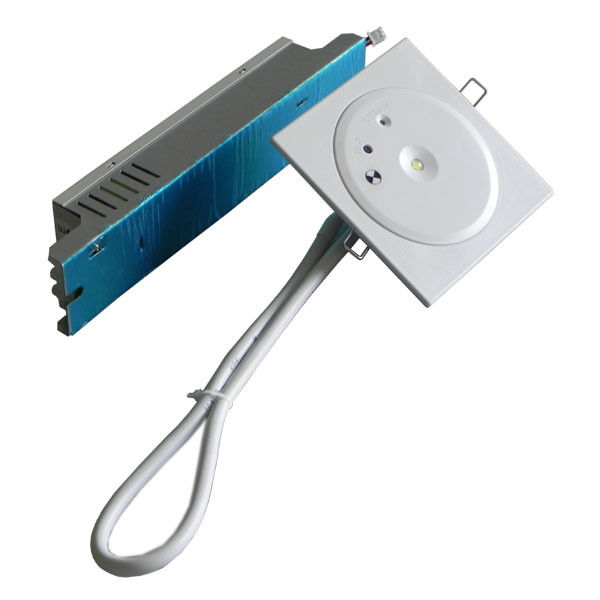

IP20 Ceiling Recessed Emergency Light Battery Operated Emergency Lighting 1



COMPANY INFORMATION

1. Business Type:   Professional Manufacture, Established in 2008, Hangzhou, China

2. Factory Size (Sq.meters):  Workshop occupies 1100m2, Warehours occupies 1580m2,Four Production Lines



3. Certificates

  • SGS Factory
  • CE & Rohs
  • IP65

4. Equipments

  • Intergrating Spheres: to measure brightness(luminous flux)
  • Wave Soldering Machine: to solder PCBs
  • Aging Test Board: to test products performance and select good products
  • Constant Temperature Humidity Chamber: to simulate different environment condition and test products

3. OEM/ODM available:


       1) Silk print logo on the product

       2) Customized products
       3) Customized package



4. After-sale service:


       1) All products will be strictly quality-checked before packing.

       2) All products will be well packed before shipping.

       3) All products and most of accessories have 3 year warranty.

       4) Lead-acid battery for 6 month and fluorescent tube for 3 month.


5. Exhibitions & Fairs

  • 2015 Hong Kong International Lighting Fair (Spring Edition)
  • 19th Guangzhou International Lighting Exhibitions
  • 115th Canton Fair 2014 Spring
  • Russian Exhibition 2013 Winter

5. Payment:  TT, Western Union, MoneyGram, L/C
