Place of Origin:
CN;ZHE
Brand Name:
ZhuiMing
Certification:
CE , RoHS
Model Number:
EL1*3AN-RT
Contact Us
Self-test Emergency Lights, Emergency LED Lighting with Rechargeable Battery
Function
Over 3hrs emergency lighting after sudden blackout with Self-test Function
Application
For shoping malls, office buildings,goverment buildings, teaching buildings, residential buildings, hospitals, dormitories and so on.
Certificate
Guaranteed by CE and RoHS
PRODUCT SPECIFICATION
|
Operation |
Non-Maintained |
|
Input Voltage |
110V-127V 50/60Hz;220V-240V 50/60Hz |
|
Charging Current |
40mA(Nominal) |
|
Lamp type |
3W SMD White LED |
|
Battery |
Ni-mH Battery 3.6V 1.6Ah |
|
Indicator |
Red LED Indicates Charging |
|
Duration Time |
> 3 hrs |
|
Construction |
Electro-galvanized Steel Casing; PC Plate |
|
IP Rate |
IP42 |
|
Installation |
Ceiling Recessed Mounted |
|
Weight |
0.6kg |
|
Working Temperature |
-10ºC to 55ºC |
|
Size |
350mm×110mm×38mm Tolerance ±0.03mm |
|
Customization |
Battery, Duration Time, Package, Wire Length |
PACKAGE
| Package | 1 Set in 1 Inner Box, 20 Sets in 1 Outer Carton |
| Outer Carton Size | 450*370*250 mm |
| Gross Weight | 14 kg |
| Net Weight | 9.85 kg |
DELIVERY TIME
25-35 days on receipt of your payments

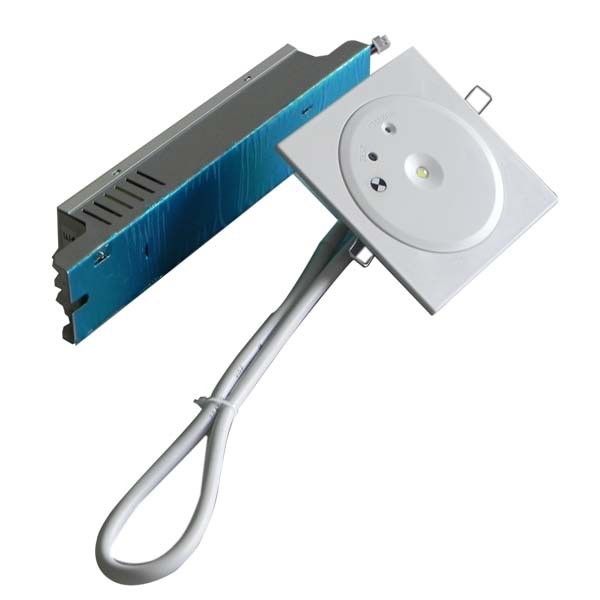

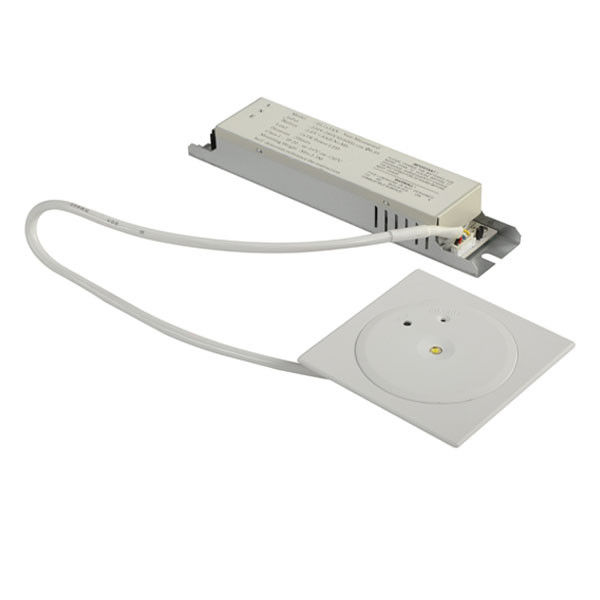

PRODUCT SHOWS
Self-test Function with Indicator and Test Button
1. Indicator status without test button operation
|
Indicator |
Performance |
Means Status |
|
Red |
Lit |
Charging |
|
Green |
Lit |
Fully charged |
|
Slow blink(1Hz) |
Manual check mode |
|
|
blink(3Hz) |
Automatic monthly self-check mode |
|
|
Quick blink(5Hz) |
Automatic annual self-check mode |
|
|
Yellow |
Lit |
Battery aging, or too short emergency time |
|
Slow blink(1Hz) |
Battery is in short circuit or open circuit |
|
|
blink |
Wrong connection with lamps or not matchable lamps |
|
|
Off |
|
Emergency or stop working condition |
2.Test Button Operation and Indicator Status
|
Pressed time |
Indicator status |
Check mode |
|
<1s |
No reaction |
None. To avoid mistakenly operating |
|
1~3s |
Slow blink (1Hz) in green |
check mode and discharge for 5 seconds |
|
3~5s |
blink(3Hz) in green |
monthly self-check mode and discharge for 2 mins |
|
5~7s |
Quick blink(5Hz) in green |
annual self-check mode and discharge for 1 hour |
|
>7s |
|
Stop discharging to recharge again |
