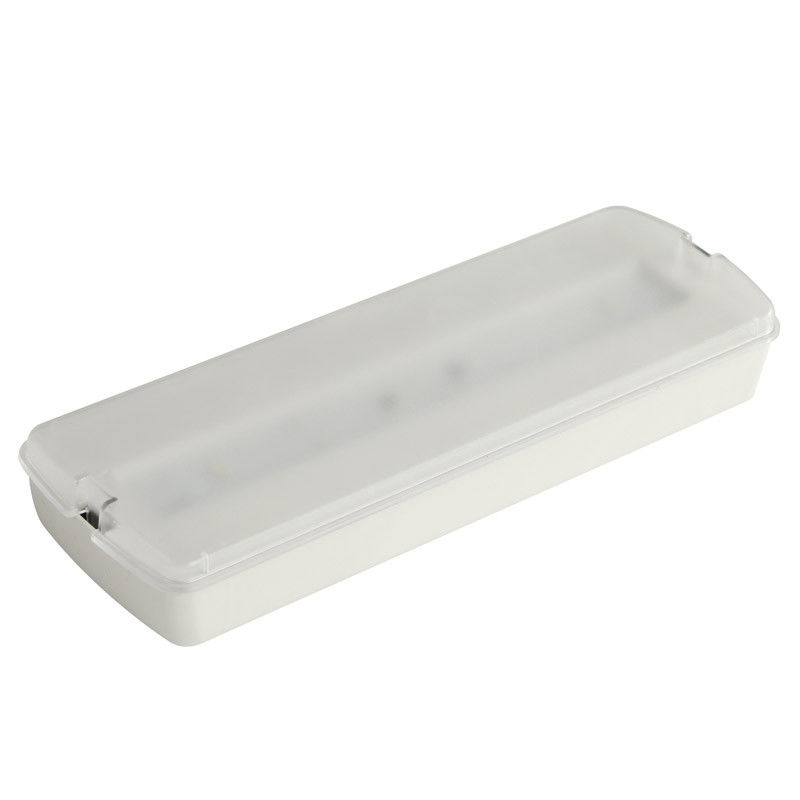

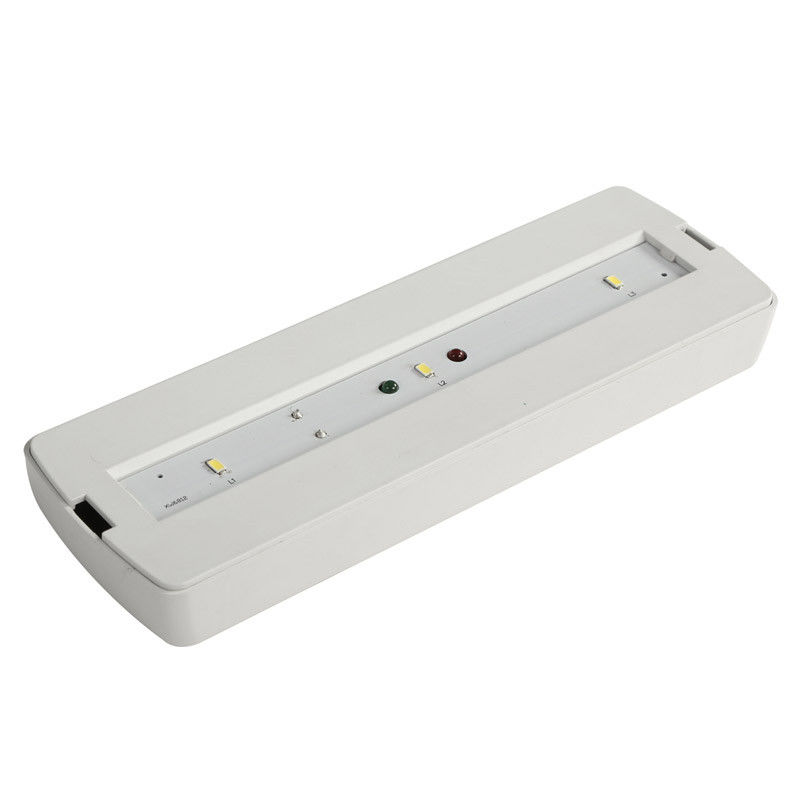

Self Testing Wall Mounted Led Automatic Emergency Light For Buildings

Self Testing Wall Mounted Led Automatic Emergency Light For Buildings

battery operated led emergency lights

self testing led emergency lights

SMD 5730 LED Self Testing Light

Place of Origin:

China

Brand Name:

Zhuiming

Certification:

CE

Model Number:

L116M-A

Contact Us

Request A Quote
Product Details
Operation::
Maintained
Input Voltage::
220V-240V,50/60HZ
Charging Current:
60mA (Nominal)
Lamp Type::
3 Pcs SMD 5730 LED
Battery:
3.6V1.0Ah
Duration Time:
3 Hours
IP Rate::
IP20
Installation::
Wall Surface Mounted
Construction:
Fire-Retardant ABS Casing And Plate;PS Diffuser.
Product Weight:
0.25 Kg
Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
each product has inner box, 50pcs in one master carton
Delivery Time
35days after we get the payment
Supply Ability
50000 pcs per month
Product Description



Overview



The product Self Test IP65 LED Non Maintained Emergency light with running man sticker is constructed from high quality Fire-Retardant ABS Casing and Plate, PC Diffuser that protects internal electrical components from moisture, rain, and snow.

The internal components and battery are completely sealed off from adverse weather to ensure reliable emergency illumination. The clear PC diffuser providing maximum light output. The IP65 rating ensures reliability even under the harshest conditions.

A powerful nickel-cadmium battery backup system provides at least 180 minutes of emergency light when AC power has been lost. The LED illumination used in this fixture is efficient. This illumination technology consumes power less  than 1.5W. A nickel metal hydride battery is available for advanced power options.



Function



Over 3hrs emergency lighting after sudden power off.





Application



For shopping malls, office buildings, government buildings, teaching buildings, and so on.





Parameters



Operation

Maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

120mA(Nominal)

Lamp type

3 pcs SMD 5730 white LED

Battery

Nickel-Cadmium Battery 1.8V 1.0Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing and Plate;PS Diffuser.

IP Rate

IP20

Installation

Wall Surface Mounted,

Weight

0.25kg

Working Temperature

-10ºC to 55ºC

Size

262mm*100mm*46mm

Tolerance ±0.03mm

Customization

Battery, Duration Time, Package





Features

  • Seal ring protects electrical components from water and moisture
  • Advanced light reflectors allow maximum light distribution
  • Connection with N E L, easy wire operation.
  • IP65 rated for wet locations
  • Easy and flexible installation
  • 3 years warranty





Service

1. Any Inquiries will be replied within 24 hours.

2. Professional manufacturer.

3. OEM/ODM available

4. High quality, fashion designs, reasonable & competitive price, fast lead time.

5. After-sale service

1) All products will be strictly quality checked before packing.

2) All products will be well packed before shipping.

3) All products and most of accessories have 3 year warranty.
