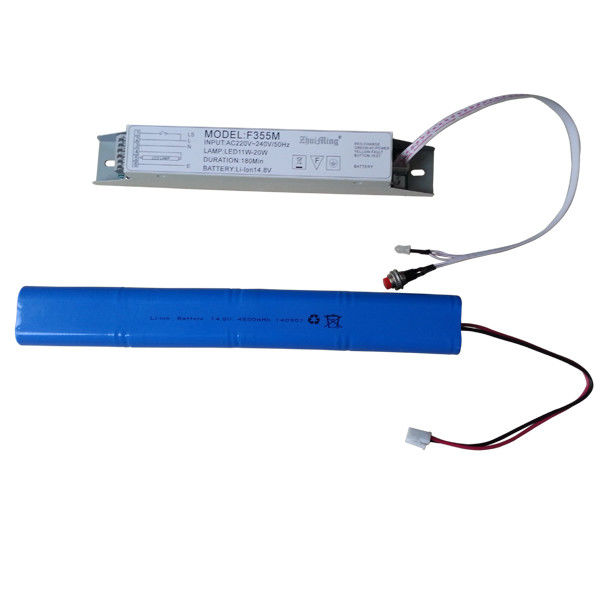

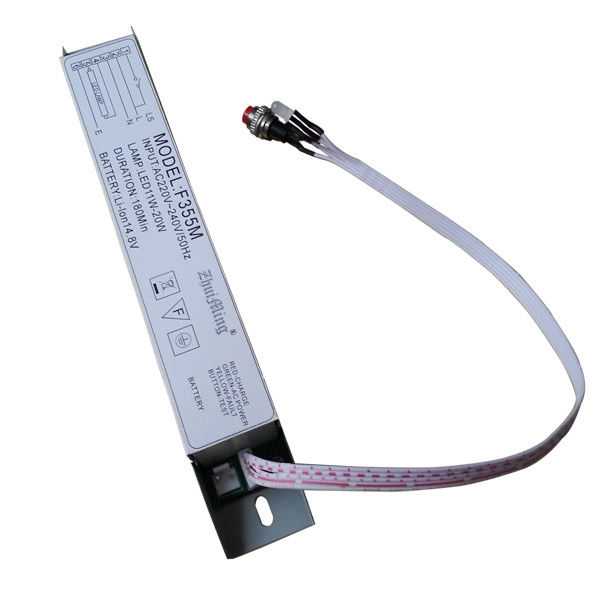

Self Testing Emergency Conversion Kit With Li-Ion Battery 14.8V 4.5Ah

Self Testing Emergency Conversion Kit With Li-Ion Battery 14.8V 4.5Ah

led emergency conversion kit

emergency light conversion kit

Emergency Conversion Kit 14.8V 4.5Ah

Place of Origin:

China

Brand Name:

Zhuiming

Certification:

CE

Model Number:

BL020AM

Contact Us

Request A Quote
Product Details
Operation:
Completely Self-contained For Maintained Condition
Input Voltage:
110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current:
200mA For 20w
Lamp Type:
20w Led Tube
Battery:
Li-ion Battery 14.8V 4.5Ah For 20w Led Tube
Duration Time:
More Than 2 Hours
Customization:
Battery, Duration Time, Package
Extra Function:
Self Testing
Material:
Iron
Indicator Red:
Charge
Indicator Green:
AC Power
Indicator Yellow:
Fault
Button:
Testing
Payment & Shipping Terms
Minimum Order Quantity
300 pcs
Packaging Details
each product has inner box, and 20pcs in one master carton
Delivery Time
35days
Payment Terms
Western Union, T/T, L/C
Supply Ability
50,000 pcs per month
Product Description



Emergency Lighting Batteries Conversion Kits with maintained operation





Product Specification



Operation

Completely Self-contained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

200mA for 20w

Lamp type

20w Led Tube

Battery

Li-ion Battery 14.8V 4.5Ah for 20w Led Tube

Indicator

Three Colors In 1 LED Indicator, Red Indicates charging, Green Indicates Emergency Mode, Yellow Indicates battery failure;

Duration Time

More than 2 hours

Construction

Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion Resistant Epoxy Spray Coating;

Weight

0.3kg(Excluding Batteries)

Working Temperature

-10℃ to 60℃

Size

220mm×30mm×30mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package





Package Information

Package

1 Set in 1 Inner Box,20Sets in 1 Outer Carton

Outer Carton Size

370mm×230mm×230mm

Gross Weight

12.5 kg

Net Weight

11.5kg




:Self Testing Emergency Conversion Kit With Li-Ion Battery 14.8V 4.5Ah 0

Self Testing Emergency Conversion Kit With Li-Ion Battery 14.8V 4.5Ah 1

Advantage:

  1. LED emergency conversion kit is widely used for all lamps with self-contained electronic drivers, such as LED tubes, LED down lights, LED spotlights, and LED Bulb Lights and fluorescent lamp with electronic drivers.
  2. High quality. It is made ​​of high quality electronic components. It has long operating life and low power consumption
  3. High-level lithium battery. It use the lithium battery which is cost-effective. With 100% output, the brightness does not loss when in illumination condition.

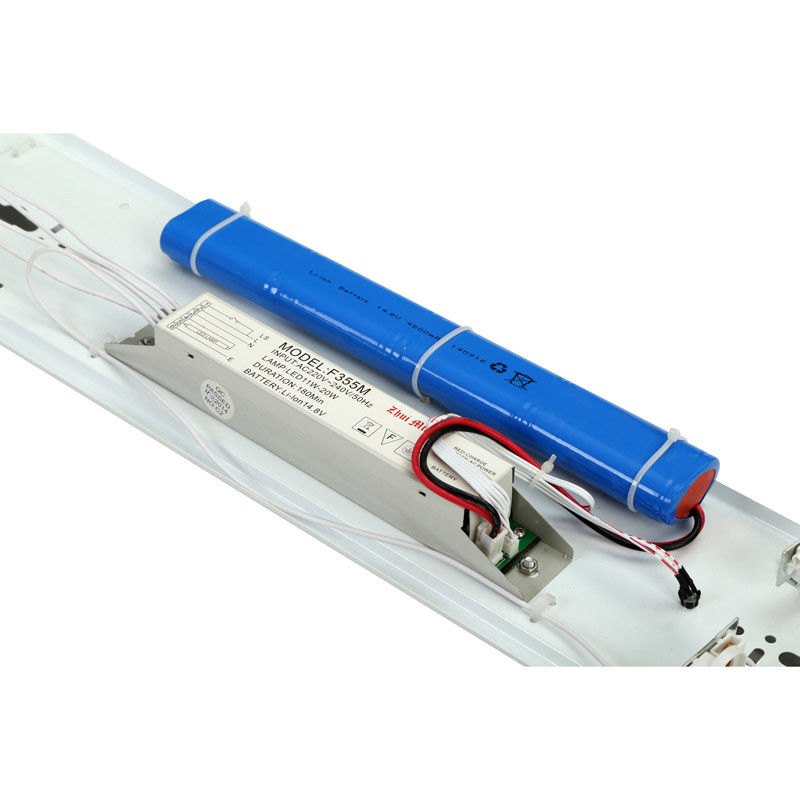

  4. It can be used build-in or external. Depend on the lamp.
  5. ODM. We accept ODM from customers about this conversion kit, now we design 3 kinds: BL10A, BL20A and BL30A.
  6. Self-test function.
  7. Protect circuit board in battery packs to make safe when battery charging or discharging.
  8. Exchange working mode of Permanent and Non-Permanent condition for lamp by connecting wire in different ways. ( Pls. see the connection dirgram on Nameplate.
