110V 240V Conversion Kit Emergency Light Power Supply Rechargeable

110V 240V Conversion Kit Emergency Light Power Supply Rechargeable

Rechargeable Emergency Light Power Supply

240V Emergency Light Power Supply

Conversion Kit Emergency Light Power Supply

Place of Origin:


Brand Name:

Zhui Ming



Model Number:


Contact Us

Request A Quote
Product Details
Input Voltage:
Li-ion Battery 14.8V/4.5Ah
Duration Time:
More Than 3 Hours
Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure
0.40 Kg
Payment & Shipping Terms
Minimum Order Quantity
300 sets
Packaging Details
1 set in 1 inner box,20sets in 1 master carton
Delivery Time
20~35 days on receipt of the deposit
Payment Terms
L/C, T/T, Western Union
Supply Ability
3000 sets per day
Product Description

110-240V Automatic Emergency Rechargeable Conversion Kit LED Tube Power Supply

LED Automatic Emergency Conversion Kit Power Supply For LED Tubes





Completely Self-contained

Input Voltage

110V-240V 50/60Hz

Charging Current

200 mA(Nominal)

Lamp type

For All Lamps with Electronic Driver


Li-ion Battery 14.8V/4.5Ah


Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure

Duration Time

More than 3 hours


Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion
Resistant Epoxy Spray Coating;



Working Temperature

-10℃ to 55℃


200mm×32mm×35mm (Body)


Battery, Duration Time, Package


Advantage :

  • Widely used. F355M is widely used. It mainly used to supply power for lamps with self-contained electronic drivers, such as LED tubes, LED down lights, LED spotlights, and LED Bulb Lights and fluorescent lamp with electronic drivers.
  • High quality. F355M is made ​​of high quality electronic components. It has long operating life and low power consumption
  • High-level lithium battery. F355M use the lithium battery which is cost-effective. With 100% output, the brightness does not loss when in illumination condition.
  • F355M can be used build-in or external. Depend on the lamp.
  • ODM. We accept ODM from customers about this conversion kit, now we design 3 kinds: BL10A, BL20A and BL30A.
  • Self-test. (Pls. see instruction as below.)
  • Protect circuit board in battery packs to make safe when battery charging or discharging.

h. Exchange working mode of Permanent and Non-Permanent condition for lamp by connecting wire in different ways. ( Pls. see the connection dirgram on Nameplate. )


Technical parameters:

1) Input voltage: AC220V (± 10%) 50Hz / 60Hz

2) Output power: <30W

3) Emergency converting time ≤3S

4) Emergency time:

Number Lamp type Rated power Battery configuration Emergency time
1 LED tube 11-18W 14.8V/4500mAh 〉3h
2 LED tube 20-30W 14.8V/4500mAh 〉1.5h
3 LED downlight 11-18W 14.8V/4500mAh 〉3h
4 LED downlight 20-25W 14.8V/4500mAh 〉1.5h
5 LED downlight 1-5W 14.8V/2000mAh 〉5h
6 LED downlight 6-10W 14.8V/2000mAh 〉3h
7 LED spotlights 11-18W 14.8V/4500mAh 〉3h
8 LED spotlights 20-25W 14.8V/4500mAh 〉1.5h

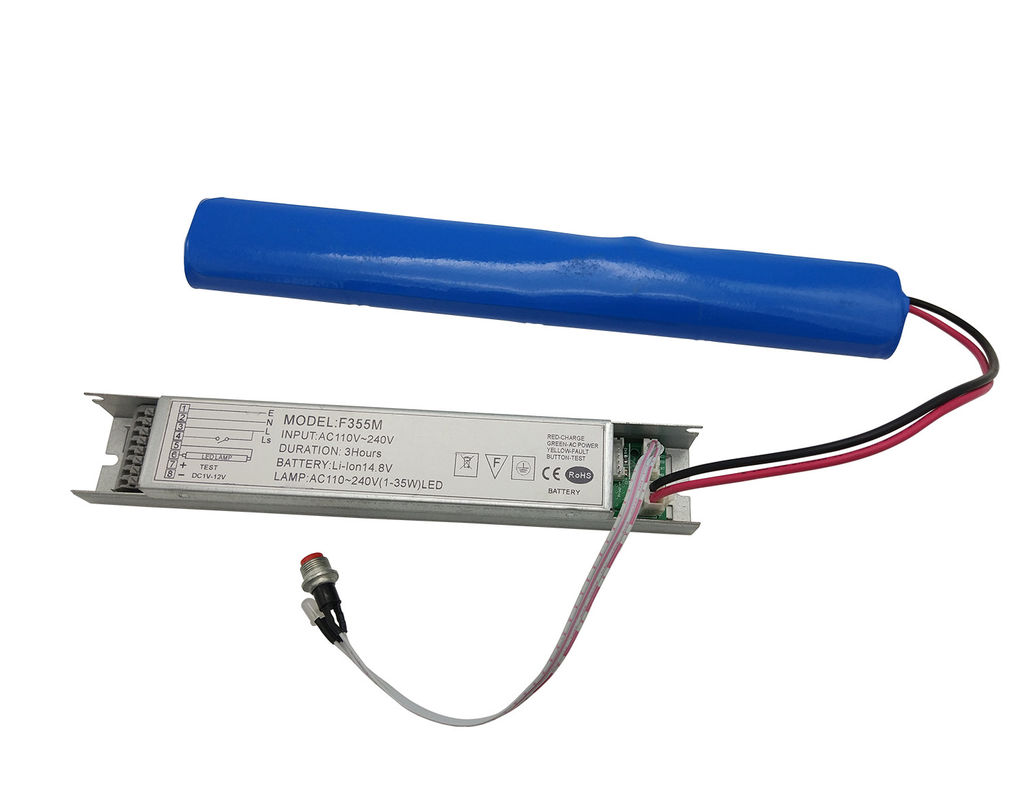

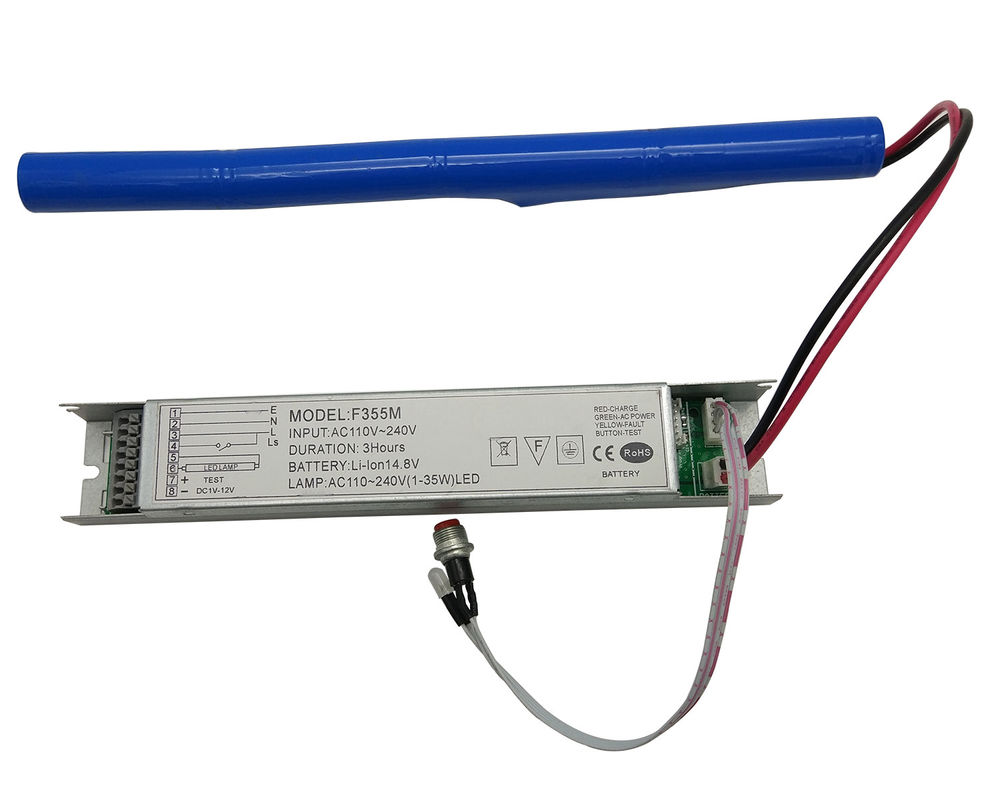

Product Show:

110V 240V Conversion Kit Emergency Light Power Supply Rechargeable 0
