Hangzhou Dreamy Technology Co.,Ltd

Automatic Rechargeable Led Exit Signs Ceiling Recessed Double Side

Product Details:
Place of Origin: China (Mainland)
Brand Name: Zhuiming
Certification: CE
Model Number: L116N-E
Payment & Shipping Terms:
Minimum Order Quantity: 300 sets
Packaging Details: 1 set in 1 box, 10 sets in 1 carton
Delivery Time: 40-45 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets per day
  • Detail Information
  • Product Description

Detail Information

Operation: Maintained Lamp Type: 6pcs SMD 5730 LED
Battery: Ni-Cd 3.6V1.8Ah Emergency Time: >3 Hours
Installation: Ceiling Recessed Construction: ABS Casing, Acrylic Plate
Input Voltage: 220-240V 50/60Hz Charging Current: 120mA
Size: 220x30x30mm IP Rate: IP20
High Light:

Ceiling Recessed Led Exit Signs

,

Rechargeable Led Exit Signs

,

3.6V1.8Ah Light Exit Signs

Product Description

LED Rechargeable Automatic Emergencia Double-side Emergency Light





Product feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,So our emergency light has high lumens,long lifetime, and low energy dissipation feature.



Product Specification

  • Operation: Maintained
  • Input Voltage: 220-240V 50/60Hz
  • Lamp Type: 6pcs SMD 5730 LED
  • Battery: Ni-Cd Battery 3.6V1.8Ah
  • Indicator: Red LED--Charging, Green LED--AC power on
  • Duration Time: 3 Hours
  • Construction: Aluminum Masterial End Cap, Acylic Plate
  • IP Rate: IP20
  • Installation: Ceiling Recessed
  • Working Temperature: -10℃ to 55℃
  • Size:265mmx30mmx30mm

Operation wire:

You can choose installing Emergency lighting in No-Maintained Lighting modality and in Maintained Lighting modality.

1)In Fig.1 is shown connection to be made to have No-Maintained lighting modality. LED emergency light will be switched ON, if there is a blackout.

2)In Fig.2 is shown connection to be made to have Maintained lighting modality. Differerence is represented by a jumper that will drive input voltage to PIN 4 .LED emergency light will be always switched ON.

Automatic Rechargeable Led Exit Signs Ceiling Recessed Double Side 0

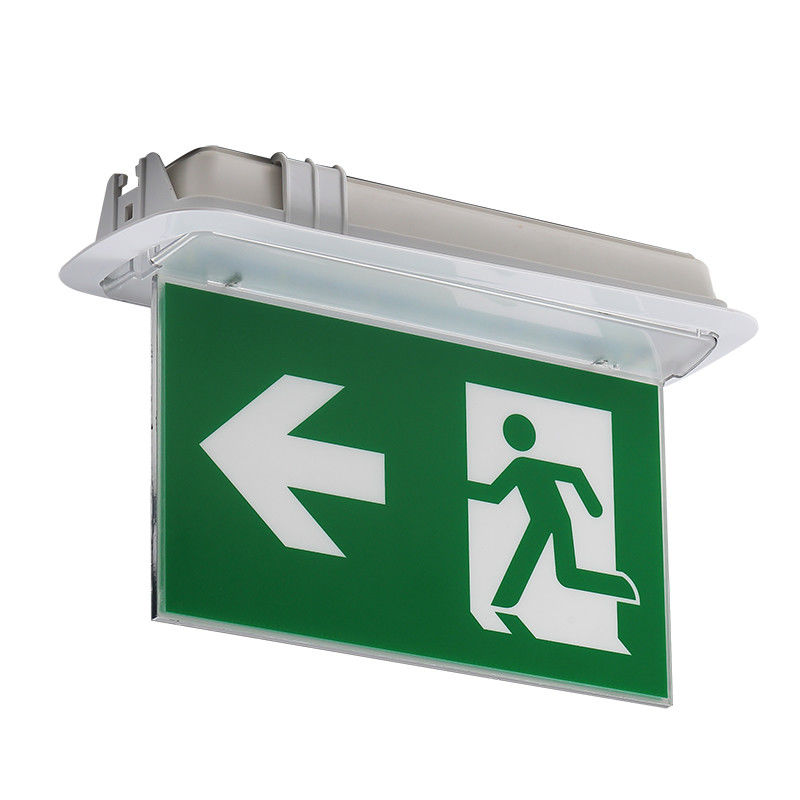

Product Show:

Automatic Rechargeable Led Exit Signs Ceiling Recessed Double Side 1
