Place of Origin:
Zhejiang (China)
Brand Name:
zhuiming
Certification:
CE
Model Number:
L203M
Contact Us
Automatic Emergency Running Man Exit Sign For 3 Years Warranty
Parameter:
|
Operation |
Maintained |
|
Input Voltage |
220V-240V 50/60Hz |
|
Charging Current |
120mA(Nominal) |
|
Lamp type |
10 pcs SMD 2835 LED |
|
Battery |
Nickel-Cadmium Battery 3.6V/1.0AH |
|
Indicator |
Green LED Indicates Charging |
|
Duration Time |
More than 3 hours |
|
Construction |
Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion Resistant Epoxy Spray Coating; and with PC Diffuser; |
|
IP Rate |
IP20 |
|
Installation |
Wall Surface Mounted |
|
Weight |
1.35 kg |
|
Working Temperature |
-10℃ to 55℃ |
|
Size |
550mm×190mm×60mm Tolerance ±0.03mm |
|
Customization |
Battery, Duration Time, Package |
Instruction for use:
1. Before installation, cut off the AC power.
2. Use single circuit, do not connect with other lights, to make sure emergency normal recharging.
3. Regular checking to make sure working condition is correct.
4. When left factory, the product is discharging, when using pls. recharging in 24 hours, to meet the rated duration time.
5. When long-term storage or out of service, pls. discharge one time for each three months to keep battery’s performance.

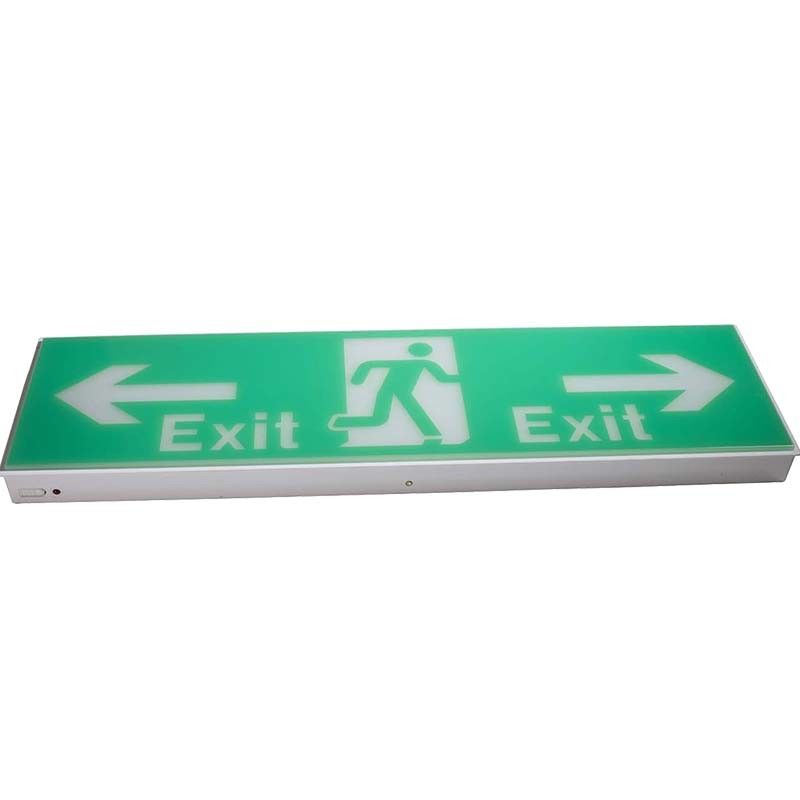

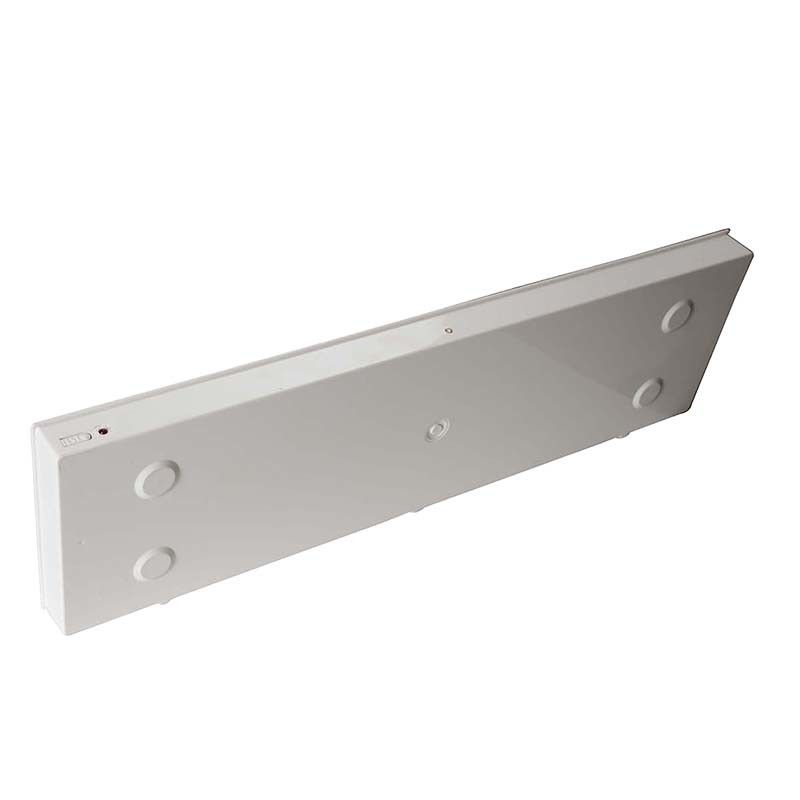

Product Show:
