Wall Surface LED Standby Rechargeable Emergency Light Small Size With Frosted Cover

Product Details:
Place of Origin:	zhejiang
Brand Name:	Zhuiming
Certification:	CE RoHS
Model Number:	L116N-A1
Payment & Shipping Terms:
Minimum Order Quantity:	300
Packaging Details:	1 set in 1 Inner Carton, 50 sets in 1 Master Carton
Delivery Time:	45days after deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000pcs/month

Contact Now

Detail Information
Bulb Type:	LED	Battery Type:	Ni-Cd
Material:	Fire-Retardant ABS Casing And Plate	Usage:	Lighting For Shopping Mall, Office Building
Certification:	CE	Specifications:	6 Pcs SMD 5730 LED
Operation:	Non-maintain	Warrange:	3 Years
Duration Time:	>3 Hrs	Installation:	Wall Surface Mounted
IP Rate:	IP20
High Light:	rechargeable emergency lamp , led rechargeable emergency light

Product Description

Wall Surface LED Standby Small Size Emergency Light With Frosted Cover

Parameters:

Operation	Maintained/Non-maintained
Input Voltage	220V-240V 50/60Hz
Charging Current	120mA(Nominal)
Lamp type	6pcs smd(5730) led
Battery Capacity	Ni-Cad, 3.6V/1.8Ah
Indicator	Red LED Indicates Charging,Green-AC power
Emergency Time	3h
Material	ABS Casing and Plate & PS diffuser
Size/ Weight	238mm×80mm×38mm/0.34kg
Working Temperature	-10°C to 55°C
Installation	wall surface mounted
Customization	Battery, Duration Time, Package

Installation instructions:

Thisproducthas two installationways,before power connect,pleaseopen itand connect AC wire. Each step as below:
L116N-A1:(Wall surface mounted)

Open the product(Pls. use tiny slot type screwdriver or flats tools to tilted product’s surface gap, make the diffuser separate from the bottom case, and take out the middleplate.
Use setscrew to fasten the bottom case on the wall.
Put AC wire through thebottom case hole, connect the main circuitboard on L,N connect terminal
Installthe middleplate.(Make the indicator lampthrough middleplate hold.)
Close the diffuser.(Fasten with the bottom case)
Connect with the AC power.

Product Shows:

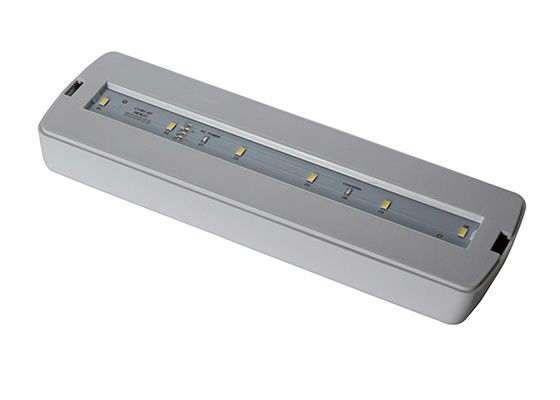

Wall Surface LED Standby Rechargeable Emergency Light Small Size With Frosted Cover 0
