Li - Ion Battery Operated LED Emergency Power Pack 110-240V For LED Lamps

Li - Ion Battery Operated LED Emergency Power Pack 110-240V For LED Lamps

led lighting power supply

emergency lighting power supply

Place of Origin:


Brand Name:

Zhui Ming



Model Number:


Contact Us

Request A Quote
Product Details
Input Voltage:
Li-ion Battery 14.8V/4.5Ah
Duration Time:
More Than 3 Hours
Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure
0.40 Kg
Payment & Shipping Terms
Minimum Order Quantity
300 sets
Packaging Details
1 set in 1 inner box,20sets in 1 master carton
Delivery Time
20~35 days on receipt of the deposit
Payment Terms
L/C, T/T, Western Union
Supply Ability
3000 sets per day
Product Description


Li-ion Battery Operated 110-240V LED Emergency Power Pack For LED Lamps





Completely Self-contained

Input Voltage

110V-240V 50/60Hz

Charging Current

200 mA(Nominal)

Lamp type

For All Lamps with Electronic Driver


Li-ion Battery 14.8V/4.5Ah


Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure

Duration Time

More than 3 hours


Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion
Resistant Epoxy Spray Coating;



Working Temperature

-10℃ to 55℃


200mm×32mm×35mm (Body)


Battery, Duration Time, Package


Advantage :

  • Widely used. F355M is widely used. It mainly used to supply power for lamps with self-contained electronic drivers, such as LED tubes, LED down lights, LED spotlights, and LED Bulb Lights and fluorescent lamp with electronic drivers.
  • High quality. F355M is made ​​of high quality electronic components. It has long operating life and low power consumption
  • High-level lithium battery. F355M use the lithium battery which is cost-effective. With 100% output, the brightness does not loss when in illumination condition.
  • F355M can be used build-in or external. Depend on the lamp.
  • ODM. We accept ODM from customers about this conversion kit, now we design 3 kinds: BL10A, BL20A and BL30A.
  • Self-test. (Pls. see instruction as below.)
  • Protect circuit board in battery packs to make safe when battery charging or discharging.

h. Exchange working mode of Permanent and Non-Permanent condition for lamp by connecting wire in different ways. ( Pls. see the connection dirgram on Nameplate. )


Technical parameters:

1) Input voltage: AC220V (± 10%) 50Hz / 60Hz

2) Output power: <30W

3) Emergency converting time ≤3S

4) Emergency time:

Number Lamp type Rated power Battery configuration Emergency time
1 LED tube 11-18W 14.8V/4500mAh 〉3h
2 LED tube 20-30W 14.8V/4500mAh 〉1.5h
3 LED downlight 11-18W 14.8V/4500mAh 〉3h
4 LED downlight 20-25W 14.8V/4500mAh 〉1.5h
5 LED downlight 1-5W 14.8V/2000mAh 〉5h
6 LED downlight 6-10W 14.8V/2000mAh 〉3h
7 LED spotlights 11-18W 14.8V/4500mAh 〉3h
8 LED spotlights 20-25W 14.8V/4500mAh 〉1.5h


Product Show:

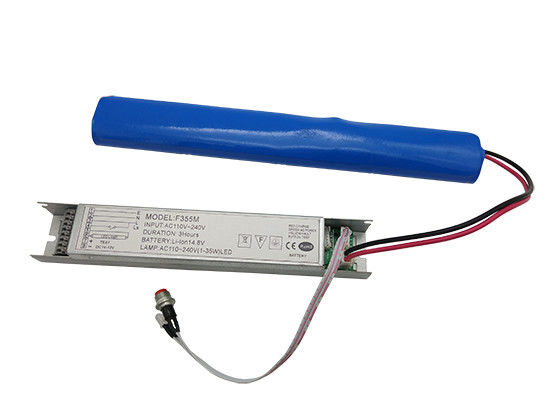

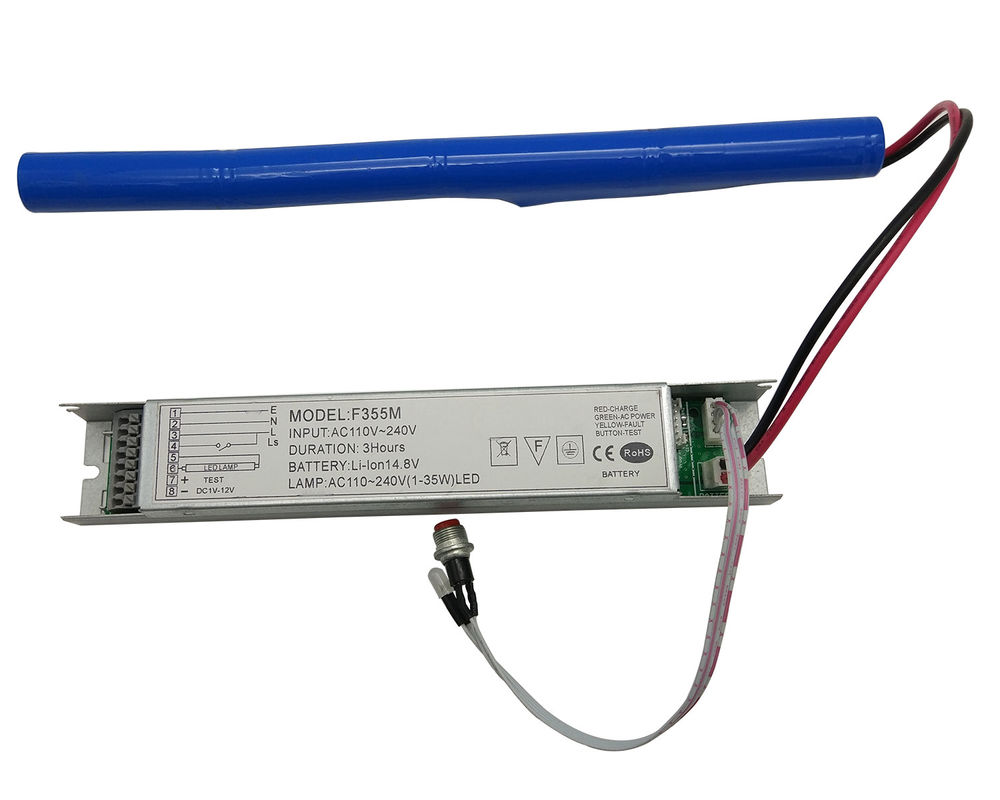

Li - Ion Battery Operated LED Emergency Power Pack 110-240V For LED Lamps 0
