IP65 Led Light Emergency Light , Battery Rechargeable LED Emergency Luminaire

IP65 Led Light Emergency Light , Battery Rechargeable LED Emergency Luminaire

led emergency conversion kit

emergency light conversion kit

Place of Origin:

China

Brand Name:

Zhui Ming

Certification:

CE

Model Number:

L122MN

Contact Us

Request A Quote
Product Details
Operation:
Maintained / Non-maintained
Lamp Used:
5pcs SMD 5730
Battery:
Nickel-Cadmium
Construction:
Fire-Retardant ABS Casing And Plate; PC Diffuser
IP Rate:
IP 65
Warranty:
3 Years
Duration:
>3 Hours
Usage:
Fire Fighting Safety Emergency
Recharge Time:
24h
Indicator:
Green--charging
Payment & Shipping Terms
Minimum Order Quantity
300 PCS
Packaging Details
1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton
Delivery Time
35 Days after deposit
Payment Terms
Western Union, L/C, T/T
Supply Ability
3000 PCS/DAY
Product Description



IP65 Waterproof LED Emergency Light, Battery Rechargeable LED Emergency Luminaire


Product Description



Operation

Maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

120mA(Nominal)

Lamp type

5pcs SMD 5730

Battery

Nickel-Cadmium Battery 3.6V 1.0Ah

Indicator

Red LED Indicates Charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing and Plate; PS Diffuser

IP Rate

IP65

Installation

Wall Surface Mounted, Ceiling Surface Mounted

Weight

0.683kg

Working Temperature

-10°C to 55°C

Size

345mm×118mm×80mm
Tolerance ±0.03mm

Customization

Battery, Duration Time, Package



Packaging & Shipping



Package

1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton

Mater Carton Size

450mm×370mm×260mm

Gross Weight

8.45 kg

Net Weight

6.83 kg





Operating Manual

  • Disconnect the AC power during installation.
  • This product should not be installed in places such as outdoors ,humid and corrosive gas and so on.
  • This product should use the separate loop-powered circuit.It should not share circuit with lighting or other electrical equipment (with a switch), in order to ensure this LED emergency Ceiling light can be recharged normally.
  • To ensure the product operating normally,it should be checked regularly.
  • The products have been discharged before leaving the factory.So it needs to be charged 24 hours when used .
  • If the product is in storage or not use for a long time, it should be charged and discharged once every three months, in order to protect the battery performance.
  • Please keep this manual.

Operation:

Non-maintained Condition:

When there is power ON,the lamp is off .And it is charging ,the Green LED indicator is on . The emergency light will light on 180 minutes when there is power off , meanwhile the Green LED indicator is off .

Maintained Condition:

When there is AC power ON,the lamp is ON , it is charging ,and the Green LED Indicator also is on .When there is AC power OFF, the lamp will go on about 180 minutes, and the Green LED indicator is OFF.



Product Show:

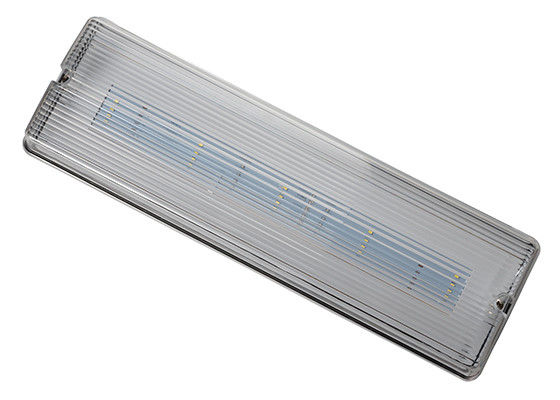

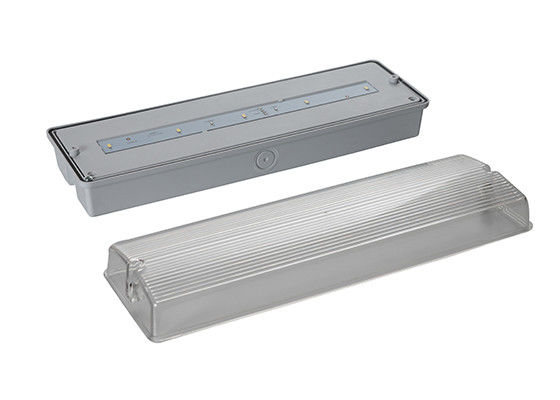

IP65 Led Light Emergency Light , Battery Rechargeable LED Emergency Luminaire 0
