6 pcs SMD 5730 LED with a lumen of 200lm and a duration time of 3 hours. It is IP65 waterproof and suitable for emerg

6 pcs SMD 5730 LED with a lumen of 200lm and a duration time of 3 hours. It is IP65 waterproof and suitable for emerg

led emergency conversion kit

led light conversion kits

200LM LED Emergency Light

Place of Origin:

China

Brand Name:

Zhuiming

Certification:

CE and Rosh

Model Number:

L116N-D

Contact Us

Request A Quote
Product Details
Material:
Plastic
Battery:
Ni-Cad Battery 3
Warranty:
3 Years
Certifiaction:
CE And Rosh
IP Rate:
IP65
Payment & Shipping Terms
Minimum Order Quantity
300 PKCS
Packaging Details
standard export packing
Delivery Time
45 days on receipt of payment
Supply Ability
2000 PCS PER DAY
Product Description



IP65 Waterproof 200LM LED Emergency Battery Operation Light For Buildings Usage



L116N-D



Parameter:

Operation:Non-maintain
Input Voltage:220V-240V,50/60HZ
Lamp type:6 pcs SMD 5730 LED
Lumen:200 lm
Battery :Ni-Cd battery 3.6V1.8Ah
Duration Time :3 hours
IP Rate:IP20
Installation:Wall surface mounted
Indication:Red Led-AC power on; Green Led-Charging
Construction:Fire-Retardant ABS Casing and Plate;PS Diffuser. PC out box.

Packing : standard export packing



Product Specification



Operation Non maintain
Input Voltage 110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current 60mA
Lamp type 6pcs SMD 5730 LED
Battery Ni-Cd battery 3.6V1.8Ah
Indicator Green LED--AC power on,Red LED--charging
Duration Time More than 3 hours
Construction Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.
Weight 0.25 kg
Working Temperature -10℃ to 55℃
Size

262mm×100mm×46mm

Tolerance±0.03mm

Customization Battery, Duration Time, Package



Package Information

Package 1 Set in 1 Inner Box,50Sets in 1 Outer Carton
Outer Carton Size 490mm×275mm×565mm
Gross Weight 21 kg
Net Weight 19.5kg





Product feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,So our emergency light has high lumens,long lifetime, and low energy dissipation feature.



Emergency light technical parameters:

  • Input Voltage:AC 220V-240V 50Hz/60Hz
  • Lamp type : 6 pcs 5730 SMD LED
  • Duration time :≥180 mins
  • Switching time:≤1 S
  • Luminous flux :>200LM

Instruction For Use:

  • Before installation, cut off the AC power.
  • Don’t installation this product in outer door, moist and corrosive gas environment .
  • Use single circuit, do not connect with other lights, to make sure emergency normal recharging.
  • Regular checking to make sure working condition is correct.
  • When left factory ,the product is discharging, when using pls. recharging in 24 hours, to meet the rated duration time.
  • When long-term storage or out of service, pls. discharge one time for each three months to keep battery’s performance.



Product Show:

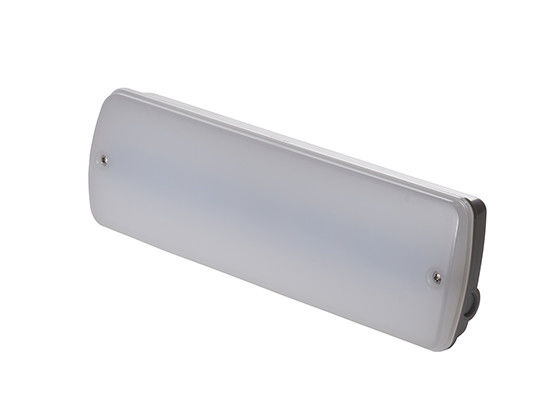

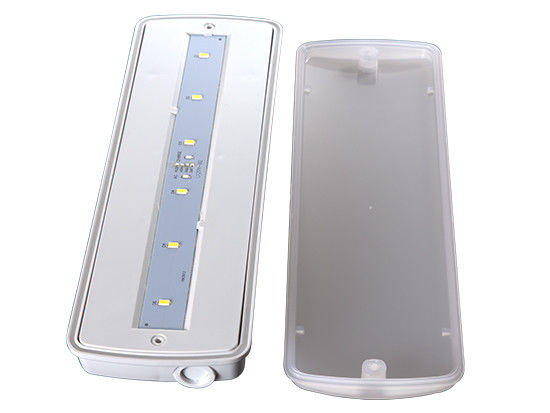

6 pcs SMD 5730 LED with a lumen of 200lm and a duration time of 3 hours. It is IP65 waterproof and suitable for emerg 0
