Battery Operated Fire - Retardant Rechargeable Emergency Light Non - Maintained

Battery Operated Fire - Retardant Rechargeable Emergency Light Non - Maintained

battery operated led emergency lights

led emergency backup lights

Place of Origin:

China (Mainland)

Brand Name:

zhuiming

Certification:

CE

Model Number:

EL015BN

Contact Us

Request A Quote
Product Details
Operation:
Non-maintained
Battery:
Ni-Cd, 3.6V 1.0Ah
IP Rate:
IP20
Lamp Type:
15pcs DIP White LED
Emergency Time:
>3 Hours
Input Voltage:
110-127V, 220-240V 50/60Hz
Installation:
Wall Surface Mounted
Gross Weight:
7.9kg
Indicator:
Green- Charging
Size:
45*37*26cm
Payment & Shipping Terms
Minimum Order Quantity
300 sets
Packaging Details
1 set in 1 box, 10 sets in 1 carton, Master size:450mm×370mm×260mm
Delivery Time
45 days after payment
Payment Terms
L/C, T/T
Supply Ability
3000 sets per day
Product Description

Non-maintained Battery Operated Rechargeable Fire-retardant Led Emergency Light

Product Specification


Operation

Maintained or Non-maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

120mA(Nominal)

Lamp type

15 pcs DIP white LED

Battery

Nickel-Cadmium Battery 3.6V 1.0Ah

Indicator

Red LED Indicates Charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing and Plate; PS Diffuser

IP Rate

IP20

Installation

Wall Surface Mounted, Ceiling Surface Mounted

Weight

0.683kg

Working Temperature

-10℃ to 60℃

Size

345mm×118mm×80mm
Tolerance ±0.03mm

Customization

Battery, Duration Time, Package


Package Information



Package

1 Set in 1 Inner Box
10 Sets in 1 Outer Carton

Outer Carton Size

450mm×380mm×280mm

Gross Weight

7.9KG

Net Weight

 6.2KG






Operating Manual

  • Disconnect the AC power during installation.
  • This product should not be installed in places such as outdoors ,humid and corrosive gas and so on.
  • This product should use the separate loop-powered circuit.It should not share circuit with lighting or other electrical equipment (with a switch), in order to ensure this LED emergency Ceiling light can be recharged normally.
  • To ensure the product operating normally,it should be checked regularly.
  • The products have been discharged before leaving the factory.So it needs to be charged 24 hours when used .
  • If the product is in storage or not use for a long time, it should be charged and discharged once every three months, in order to protect the battery performance.
  • Please keep this manual.

Application:

This product is mainly used in various types of buildings occurring sudden power outage,which can automatically supply emergency lighting . And it is mainly used for shopping malls, hotels and emergency exit of the corridor.

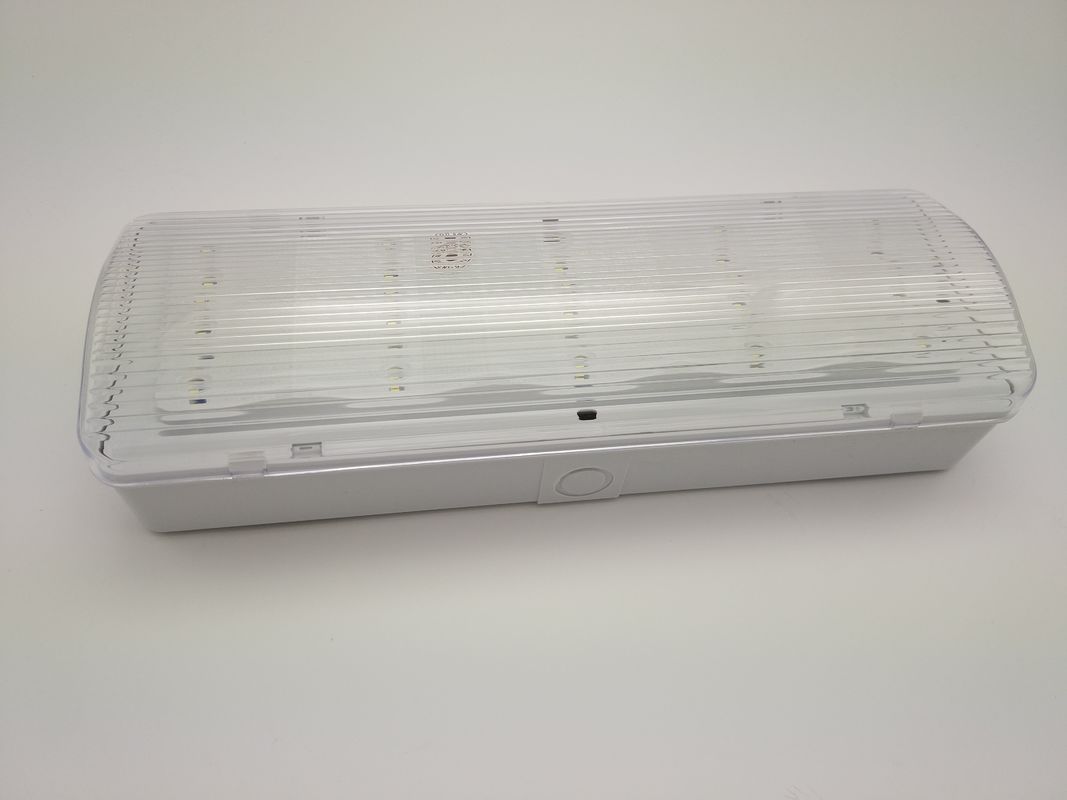

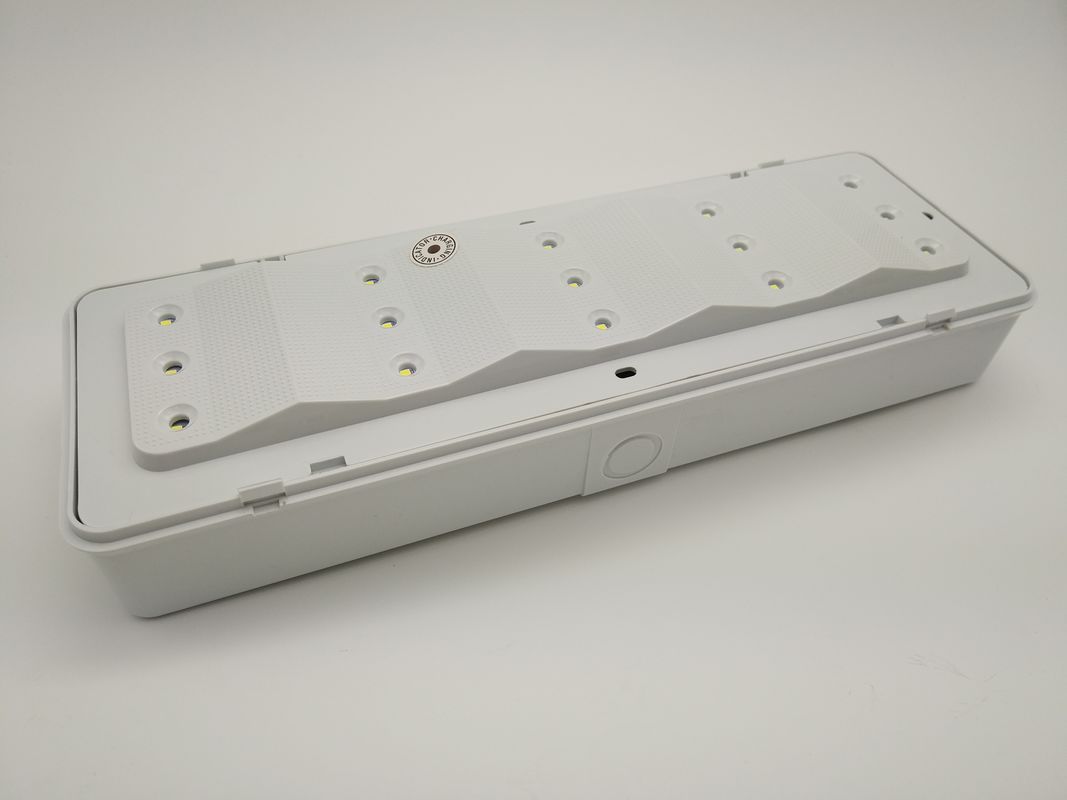

Product Picture:

Battery Operated Fire - Retardant  Rechargeable Emergency Light Non - Maintained 0
