6pcs SMD 5730 60mA Rechargeable LED Emergency Lights for Mall , hotel

6pcs SMD 5730 60mA Rechargeable LED Emergency Lights for Mall , hotel

self testing led emergency lights

led emergency backup lights

Place of Origin:

China

Brand Name:

Zhuiming

Certification:

CE

Model Number:

L116M-A

Contact Us

Request A Quote
Product Details
Operation:
Maintained / Non-maintained
Input Voltage:
110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current:
60mA
Lamp Type:
6pcs SMD 5730 LED
Battery:
Ni-Cd Battery 3.6V1.8Ah
Duration Time:
More Than 3 Hours
Customization:
Battery, Duration Time, Package
Material:
Fire Resistance ABS
Indicator Red:
Charging
Indicator Green:
AC Power
Payment & Shipping Terms
Minimum Order Quantity
300 pcs
Packaging Details
each product has inner box, and 20pcs in one master carton
Delivery Time
45 days on receipt of payment
Payment Terms
Western Union, T/T, L/C
Supply Ability
50,000 pcs per month
Product Description

Wall Mounted Fire-retardant Led Rechargeable Emergency Light With 3 Years Warranty



Application:

This product is used in all kind of building, when power off, emergency light can lighting automatically. Mainly used in Mall, hotel, office.



Feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,So our emergency light has high lumens,long lifetime, and low energy dissipation feature.



Product Specification



Operation

Maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

60mA

Lamp type

6pcs SMD 5730 LED

Battery

Ni-Cd battery 3.6V1.8Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.

Weight

0.25 kg

Working Temperature

-10℃ to 55℃

Size

238mm×80mm×40mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package





Package Information

Package

1 Set in 1 Inner Box,50Sets in 1 Outer Carton

Outer Carton Size

480mm×260mm×435mm

Gross Weight

19.5 kg

Net Weight

17.5kg



Emergency light technical parameters:

  • Input Voltage:AC 220V-240V 50Hz/60Hz
  • Lamp type : 6 pcs 5730 SMD LED
  • Duration time :≥180 mins
  • Switching time:≤1 S
  • Luminous flux :>200LM

Wall surface mounted

  • Open the product(Pls. use tiny slot type screwdriver or flats tools to tilted product’s surface gap, make the diffuser separate from the bottom case, and take out the middle plate.
  • Use setscrew to fasten the bottom case on the wall.
  • Put AC wire through the bottom case hole, connect the main circuit board on L,N connect terminal
  • Install the middle plate.(Make the indicator lamp through middle plate hold.)
  • Close the diffuser.(Fasten with the bottom case)
  • Connect with the AC power.

Picture:

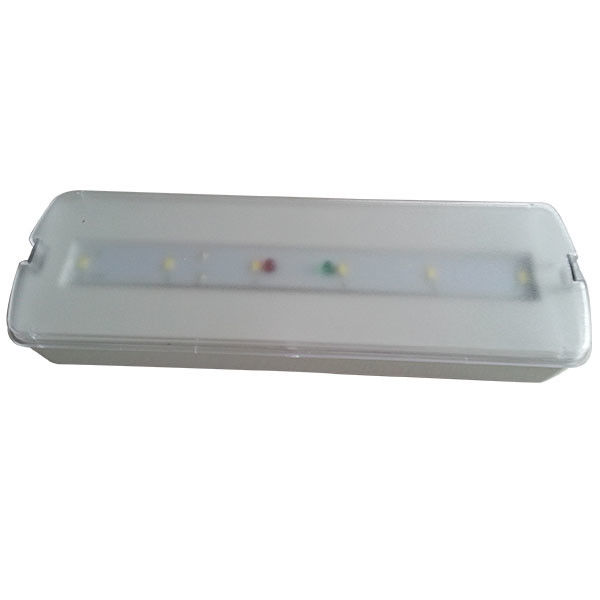

6pcs SMD 5730 60mA Rechargeable LED Emergency Lights for Mall , hotel 0
