200LM Ceiling Recessed Indoor Led Battery Operated exit signs with emergency lighting

200LM Ceiling Recessed Indoor Led Battery Operated exit signs with emergency lighting

led exit signs with emergency lighting

led exit signs with battery backup

Place of Origin:

China

Brand Name:

Zhuiming

Certification:

CE

Model Number:

L116M-B

Contact Us

Request A Quote
Product Details
Operation:
Maintained Condition
Input Voltage:
220V-240V 50/60Hz
Charging Current:
60mA
Lamp Type:
6pcs SMD 5730 LED
Battery:
Ni-Cd Battery 3.6V1.8Ah
Duration Time:
More Than 3 Hours
Customization:
Battery, Duration Time, Package
Material:
Fire Resistance ABS
Indicator Red:
Charging
Indicator Green:
AC Power
Extra Function:
Self Testing
Payment & Shipping Terms
Minimum Order Quantity
300 pcs
Packaging Details
each product has inner box, and 50pcs in one master carton
Delivery Time
45 days on receipt of your payment
Payment Terms
Western Union, T/T, L/C
Supply Ability
50,000 pcs per month
Product Description

Battery Operated 200LM Ceiling Recessed SMD Led Indoor Exit Sign



Product Specification



Operation

Non maintain

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

60mA

Lamp type

6pcs SMD 5730 LED

Battery

Ni-Cd battery 3.6V1.8Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.

Weight

0.38 kg

Working Temperature

-10℃ to 55℃

Size

270mm×100mm×46mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package



Package Information

Package

1 Set in 1 Inner Box,50Sets in 1 Outer Carton

Outer Carton Size

490mm×275mm×565mm

Gross Weight

23 kg

Net Weight

21.5kg



Ceiling Recessed Mounted

  • Use the scissors to cut the trepanning mould on inner box and make hole first.
  • Open the product and assemble.(Same as above steps 1-5 of L116N-A, then assemble the frame)
  • Put the spring on product.
  • Put the product on the wall.
  • Connect the AC power.

Instruction for use:

  • Before installation, cut off the AC power.
  • Don’t installation this product in outer door, moist and corrosive gas environment .
  • Use single circuit, do not connect with other lights, to make sure emergency normal recharging.
  • Regular checking to make sure working condition is correct.
  • When left factory ,the product is discharging, when using pls. recharging in 24 hours, to meet the rated duration time.
  • When long-term storage or out of service, pls. discharge one time for each three months to keep battery’s performance.

Product Show:

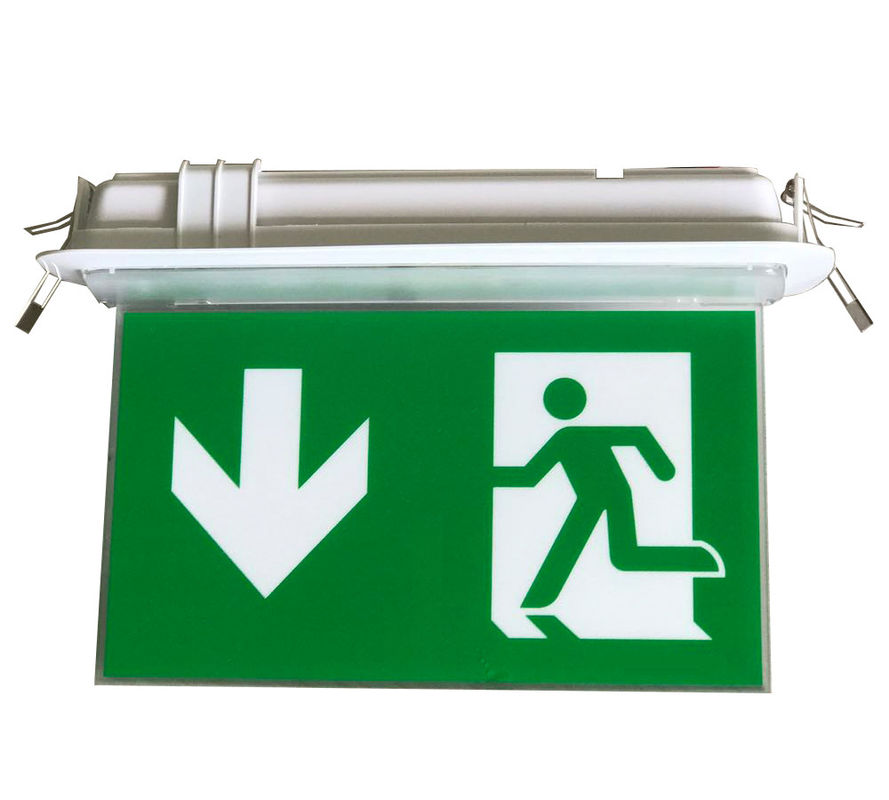

200LM Ceiling Recessed Indoor Led Battery Operated exit signs with emergency lighting 0

200LM Ceiling Recessed Indoor Led Battery Operated exit signs with emergency lighting 1
