Product Details:
|
|
| Place of Origin: | Zhejiang (China) |
|---|---|
| Brand Name: | zhuiming |
| Certification: | CE |
| Model Number: | L203M |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 300 sets |
| Packaging Details: | 1 Set in 1 Inner Box 10 Sets in 1 Outer Carton, Outer Carton Size:735mm×420mm×225mm, Gross Weight: 14.5kg |
| Delivery Time: | 45 days after payment |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 3000 sets per day |
|
Detail Information |
|||
| Operation: | Maintained | Lamp Type: | 10 PCS 2835 SMD |
|---|---|---|---|
| Battery: | Ni-Cd, 3.6V 1.0Ah | Emergency Time: | More Than 3 Hours |
| Input Voltage: | 220V-240V 50/60Hz | Installation: | Wall Surface Mounted |
| Size: | 550mm×155mm×35mm | Material: | Plastic |
| Indicator: | Green-charging | IP Rate: | IP20 |
| High Light: | 220V LED Emergency Exit Sign,Battery Power Emergency Exit Sign,Emergency Exit Sign IP20 |
||
Product Description

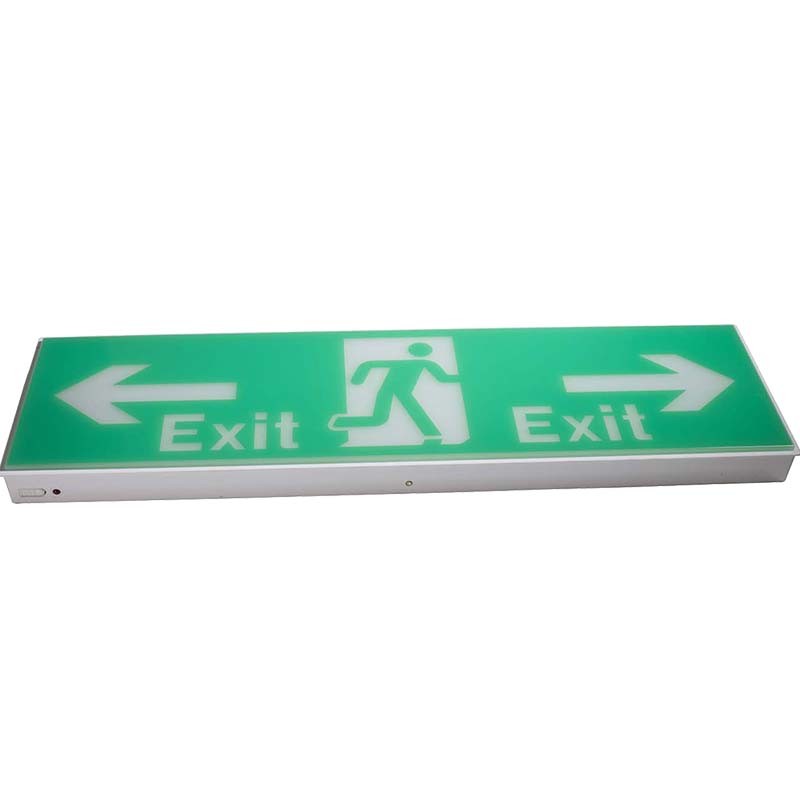

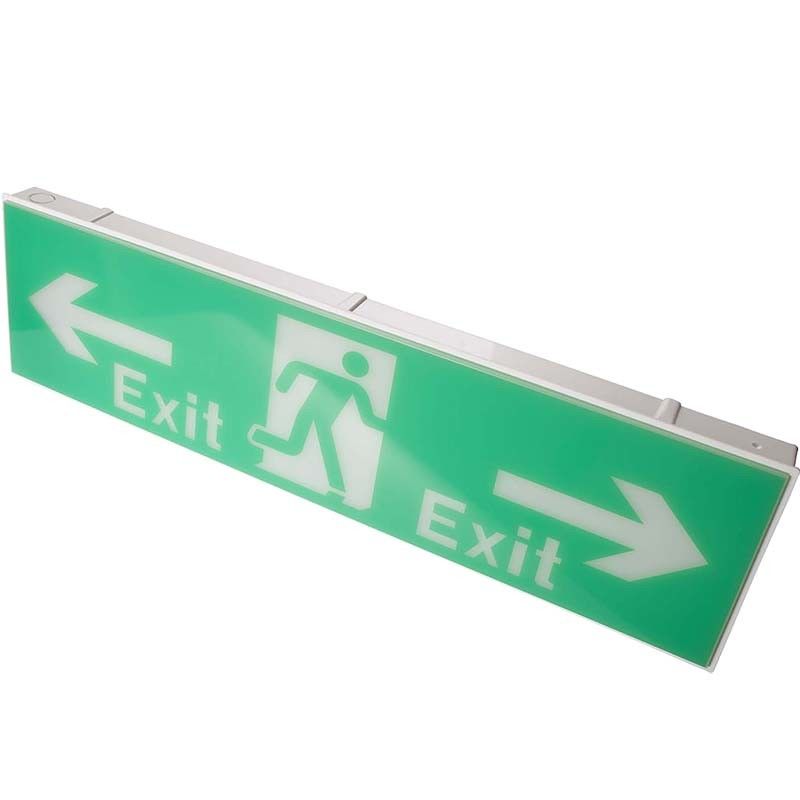

220V LED Emergency Battery Power Exi Sign With 3 Years Warranty
Parameter:
|
Operation |
Maintained |
|
Input Voltage |
220V-240V 50/60Hz |
|
Charging Current |
120mA(Nominal) |
|
Lamp type |
10 pcs SMD 2835 LED |
|
Battery |
Nickel-Cadmium Battery 3.6V/1.0AH |
|
Indicator |
Green LED Indicates Charging |
|
Duration Time |
More than 3 hours |
|
Construction |
Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion Resistant Epoxy Spray Coating; and with PC Diffuser; |
|
IP Rate |
IP20 |
|
Installation |
Wall Surface Mounted |
|
Weight |
1.35 kg |
|
Working Temperature |
-10℃ to 55℃ |
|
Size |
550mm×190mm×60mm Tolerance ±0.03mm |
|
Customization |
Battery, Duration Time, Package |
Instruction for use:
1. Before installation, cut off the AC power.
2. Use single circuit, do not connect with other lights, to make sure emergency normal recharging.
3. Regular checking to make sure working condition is correct.
4. When left factory, the product is discharging, when using pls. recharging in 24 hours, to meet the rated duration time.
5. When long-term storage or out of service, pls. discharge one time for each three months to keep battery’s performance.
Product Show:
