Wall Surface Mounted SMD LED Emergency Exit Sign / Plastic Runing Man Exit Sign

Wall Surface Mounted SMD LED Emergency Exit Sign / Plastic Runing Man Exit Sign

led exit signs with battery backup

led fire exit signs

Place of Origin:

Zhejiang (China)

Brand Name:

zhuiming

Certification:

CE

Model Number:

L203M

Contact Us

Request A Quote
Product Details
Operation:
Maintained
Lamp Type:
10 PCS 2835 SMD
Battery:
Ni-Cd, 3.6V 1.0Ah
Emergency Time:
More Than 3 Hours
Input Voltage:
220V-240V 50/60Hz
Installation:
Wall Surface Mounted
Size:
550mm×155mm×35mm
Material:
Plastic
Indicator:
Green-charging
IP Rate:
IP20
Payment & Shipping Terms
Minimum Order Quantity
300 sets
Packaging Details
1 Set in 1 Inner Box 10 Sets in 1 Outer Carton, Outer Carton Size:735mm×420mm×225mm, Gross Weight: 14.5kg
Delivery Time
45 days after payment
Payment Terms
Western Union, L/C, T/T
Supply Ability
3000 sets per day
Product Description

Wall Surface Mounted SMD LED Emergency Exit Sign, Plastic Runing Man Exit Sign



Parameter:

Operation

Maintained

Input Voltage

220V-240V 50/60Hz

Charging Current

120mA(Nominal)

Lamp type

10 pcs SMD 2835 LED

Battery

Nickel-Cadmium Battery 3.6V/1.0AH

Indicator

Green LED Indicates Charging

Duration Time

More than 3 hours

Construction

Electro-Galvanized  Steel  Casing  of  High

Reflectance  Finished  with  Corrosion  Resistant Epoxy Spray Coating; and with PC Diffuser;

IP Rate

IP20

Installation

Wall Surface Mounted

Weight

1.35 kg

Working Temperature

-10℃ to 55

Size

550mm×190mm×60mm

Tolerance ±0.03mm

Customization

Battery, Duration Time, Package



Instruction for use:

1. Before installation, cut off the AC power.

2. Use single circuit, do not connect with other lights, to make sure emergency normal recharging.

3. Regular checking to make sure working condition is correct.

4. When left factory, the product is discharging, when using pls. recharging in 24 hours, to meet the rated duration time.

5. When long-term storage or out of service, pls. discharge one time for each three months to keep battery’s performance.

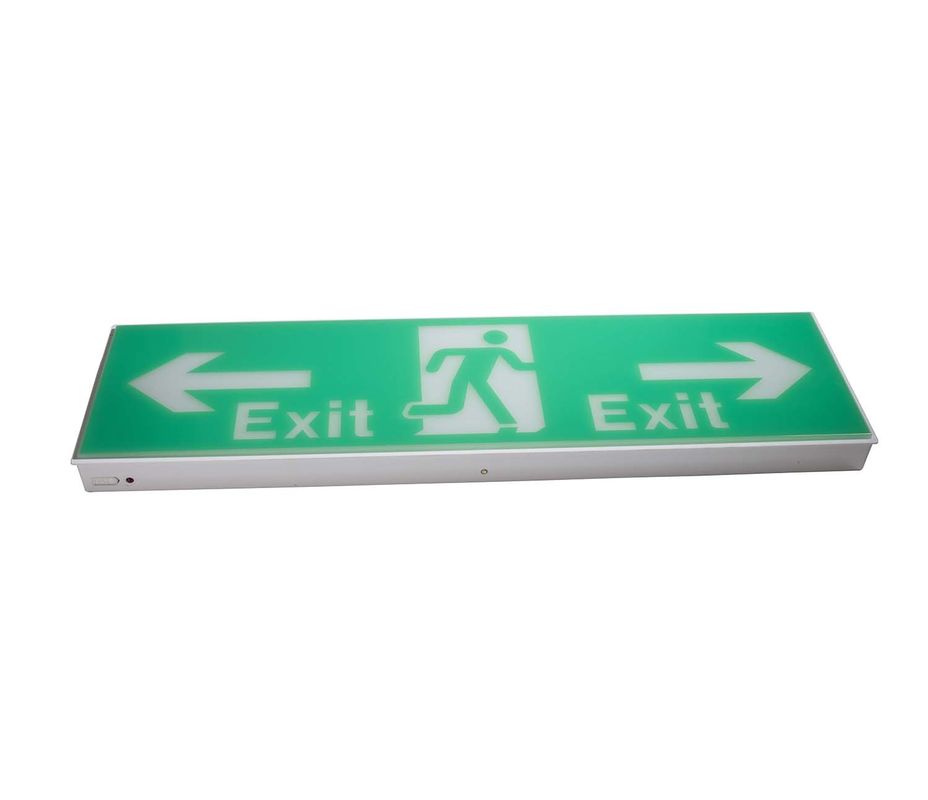

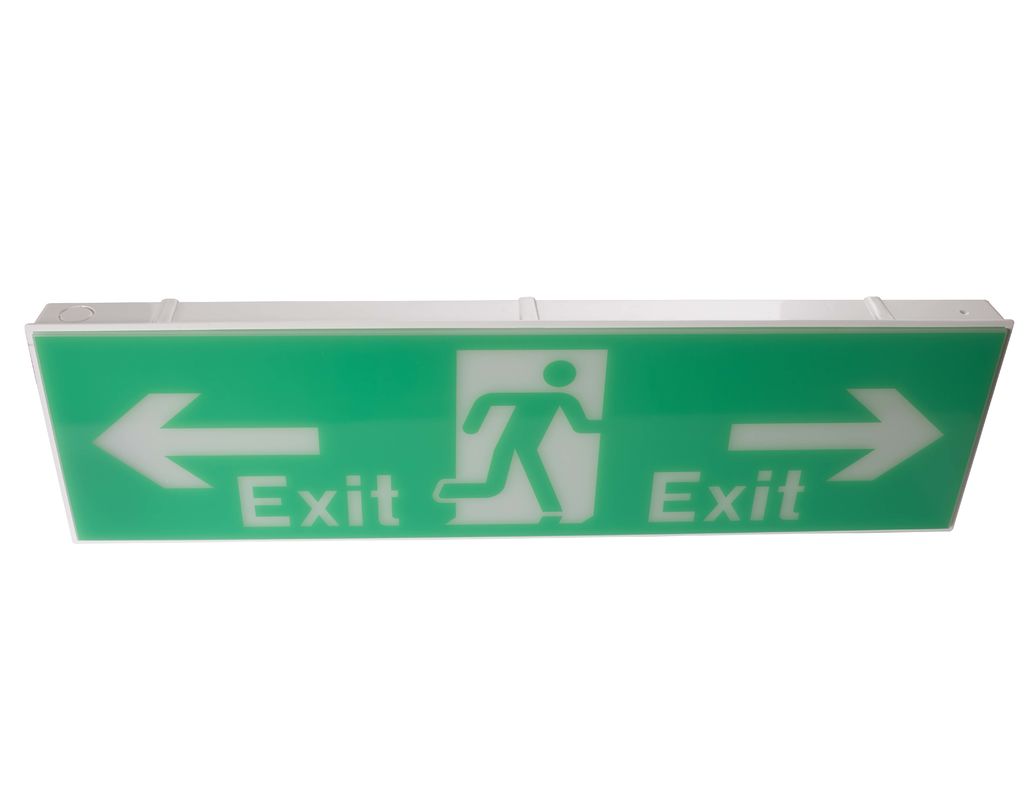

Product Show:

Wall Surface Mounted SMD LED Emergency Exit Sign / Plastic Runing Man Exit Sign 0Wall Surface Mounted SMD LED Emergency Exit Sign / Plastic Runing Man Exit Sign 1
