IP20 Ceiling Emergency Light Permanent / Non - Permanent LED Lamp High Brightness

Product Details:
Place of Origin: China
Brand Name: Zhui Ming
Certification: CE
Model Number: EL1X3AN
Payment & Shipping Terms:
Minimum Order Quantity: 300PCS
Packaging Details: 1 Set in 1 Inner Carton,20 sets in 1 Master Carton
Delivery Time: 45 Days after Deposit
Supply Ability: 3000PCS/DAY
  • Detail Information
  • Product Description

Detail Information

Operation: Non-maintained Lamp Used: 1*3W SMD White LED
Battery: Ni-mH 3.6V 1.6Ah Construction: Electro-galvanized Steel Casing,PC Plate
IP Rating: IP20 Warranty: 3years
Duration Time: >3hrs Usage: Fire Fighting Safety Emergency
Input Voltage: 110-127V,220-240V 50/60Hz Package: 20PCS/45*37*25CM/11.7KG/CTN
High Light:

non maintained emergency lighting


220V emergency light

Product Description


IP20 3 Hours Operation LED Emergency Light, Permanent / Non-permanent LED Lamp


Product Specification



Input Voltage

110V-127V 50/60Hz; 220V-240V 50/60Hz

Charging Current


Lamp type

1 watt SMD White LED


Nickel-mH Battery 3.6V 1.6Ah 1.0AH


Red LED Indicates Charging

Duration Time

More than 3 hours


Electro-galvanized Steel Casing with Corrosion Resistant Epoxy Spray Coating; PC Plate

IP Rate



Ceiling Recessed Mounted


0.5 kg

Working Temperature

-10℃ to 60℃



Tolerance ±0.03mm


Battery, Duration Time, Package, Wire length



Technical Parameters:

  1. Input Power: AC 220V-240V 50Hz / 60Hz
  2. Light source:3W high power LED
  3. Emergency time ≥180 minutes
  4. emergency conversion time ≤IS
  5. Emergency switching voltage: AC 144V-204V 50Hz / 60Hz
  6. Battery: Ni-mH 3.6V / 1600mA
  7. Installing hole size: Ф75mm

Operating Manual

  • Disconnect the AC power during installation.
  • This product should not be installed in places such as outdoors ,humid and corrosive gas and so on.
  • This product should use the separate loop-powered circuit.It should not share circuit with lighting or other electrical equipment (with a switch), in order to ensure this LED emergency Ceiling light can be recharged normally.
  • To ensure the product operating normally,it should be checked regularly.
  • The products have been discharged before leaving the factory.So it needs to be charged 24 hours when used .
  • If the product is in storage or not use for a long time, it should be charged and discharged once every three months, in order to protect the battery performance.
  • Please keep this manual.

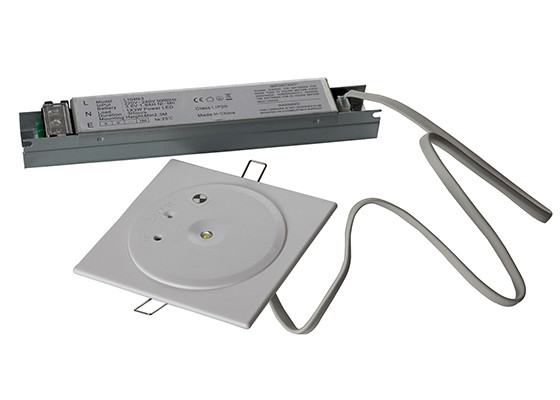

Product Show:


IP20 Ceiling Emergency Light Permanent / Non - Permanent LED Lamp High Brightness 0
