Fire Resistance Wall Recessed Emergency Light Ni-Cd Battery 3.6V1.8Ah Battery

Product Details:
Place of Origin: China
Brand Name: Zhuiming
Certification: CE
Model Number: L116M-C1
Payment & Shipping Terms:
Minimum Order Quantity: 300 pcs
Packaging Details: each product has inner box, and 20pcs in one master carton
Delivery Time: 35days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000 pcs per month
Contact Now

Detail Information

Operation: Maintained Condition Input Voltage: 110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current: 60mA Lamp Type: 6pcs SMD 5730 LED
Battery: Ni-Cd Battery 3.6V1.8Ah Duration Time: More Than 3 Hours
Customization: Battery, Duration Time, Package Material: Fire Resistance ABS
Indicator Red: Charging Indicator Green: AC Power
Extra Function: Self Testing

Product Description

Wall Recessed Rechargeable Led Light With 180 Minuters Emergency Time





Product Specification



Operation

Maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

60mA

Lamp type

6 pcs SMD 5730 LED

Battery

Ni-Cd battery 3.6V1.8Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.

Weight

0.25 kg

Working Temperature

-10℃ to 55℃

Size

262mm×100mm×46mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package





Package Information

Package

1 Set in 1 Inner Box,50Sets in 1 Outer Carton

Outer Carton Size

490mm×275mm×565mm

Gross Weight

23 kg

Net Weight

21.5kg



Product feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,So our emergency light has high lumens,long lifetime, and low energy dissipation feature.



Wall recessed

  • Fix the outer box in the wall.
  • Use the scissors to cut the trepanning mould on inner box .And make hole first.
  • Open the product and assemble.(Same as above steps 1-5 of L116N-A, then assemble the frame)
  • Put the product in the outer box .
  • Connect the AC power.

Picture:

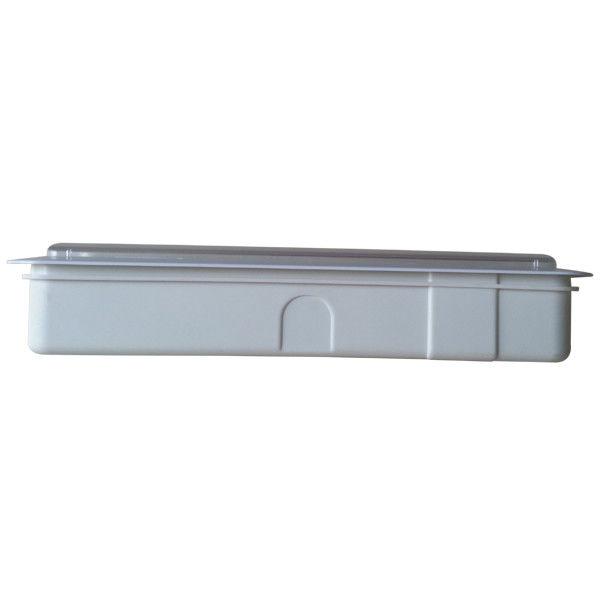

Fire Resistance Wall Recessed Emergency Light Ni-Cd Battery 3.6V1.8Ah Battery

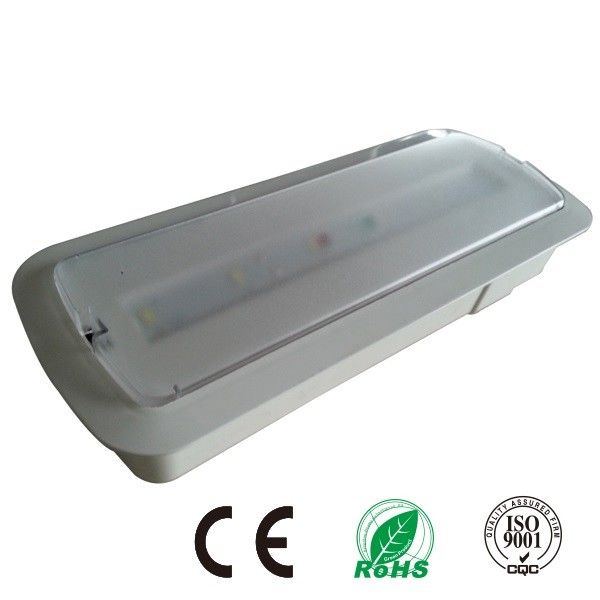

Fire Resistance Wall Recessed Emergency Light Ni-Cd Battery 3.6V1.8Ah Battery
