China Waterproof Emergency Light manufacturer

240V LED Battery Backup Rechargeable Emergency Light With 180 Minuters Operation

Product Details:
Place of Origin: China
Brand Name: Zhuiming
Certification: CE
Model Number: L116M-A1
Payment & Shipping Terms:
Minimum Order Quantity: 300 pcs
Packaging Details: each product has inner box, and 20pcs in one master carton
Delivery Time: 35days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50,000 pcs per month
Contact Now

Detail Information

Operation: Maintained Condition Input Voltage: 110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current: 60mA Lamp Type: 6pcs SMD 5730 LED
Battery: Ni-Cd Battery 3.6V1.8Ah Duration Time: More Than 3 Hours
Customization: Battery, Duration Time, Package Material: Fire Resistance ABS
Indicator Red: Charging Indicator Green: AC Power

Product Description

240V LED Battery Backup Emergency Power Light With 180 Minuters Operation



Application:

This product is used in all kind of building, when power off, emergency light can lighting automatically. Mainly used in Mall, hotel, office.



Feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,So our emergency light has high lumens,long lifetime, and low energy dissipation feature.



Product Specification



Operation

Maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

60mA

Lamp type

6pcs SMD 5730 LED

Battery

Ni-Cd battery 3.6V1.8Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.

Weight

0.25 kg

Working Temperature

-10℃ to 55℃

Size

238mm×80mm×40mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package





Package Information

Package

1 Set in 1 Inner Box,50Sets in 1 Outer Carton

Outer Carton Size

480mm×260mm×435mm

Gross Weight

19.5 kg

Net Weight

17.5kg



Emergency light technical parameters:

  • Input Voltage:AC 220V-240V 50Hz/60Hz
  • Lamp type : 6 pcs 5730 SMD LED
  • Duration time :≥180 mins
  • Switching time:≤1 S
  • Luminous flux :>200LM

Wall surface mounted

  • Open the product(Pls. use tiny slot type screwdriver or flats tools to tilted product’s surface gap, make the diffuser separate from the bottom case, and take out the middle plate.
  • Use setscrew to fasten the bottom case on the wall.
  • Put AC wire through the bottom case hole, connect the main circuit board on L,N connect terminal
  • Install the middle plate.(Make the indicator lamp through middle plate hold.)
  • Close the diffuser.(Fasten with the bottom case)
  • Connect with the AC power.

Picture:

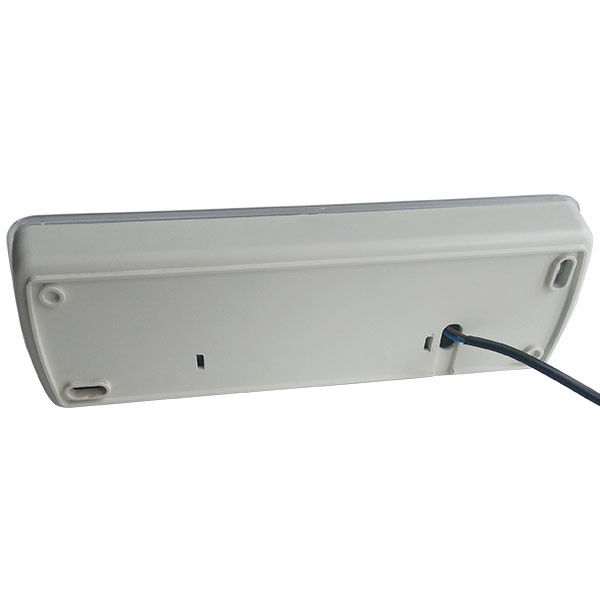

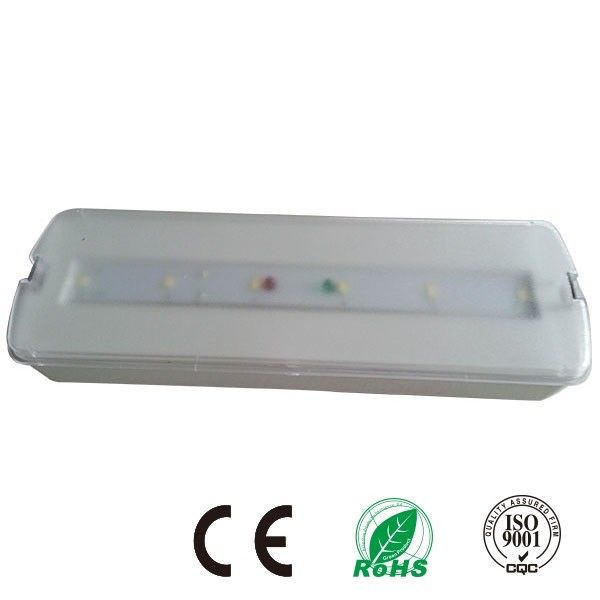

240V LED Battery Backup Rechargeable Emergency Light With 180 Minuters Operation
