Product Details:
Place of Origin:	China
Brand Name:	Zhui Ming
Certification:	CE
Model Number:	EL015ANT
Payment & Shipping Terms:
Minimum Order Quantity:	300 PCS
Packaging Details:	1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton
Delivery Time:	35 Days after deposit
Supply Ability:	3000 PCS/DAY

Detail Information
Operation:	Non Maintained	Lamp Used:	15 Pcs DIP White LED
Battery:	Nickel-Cadmium	Construction:	Fire-Retardant ABS Casing And Plate; PC Diffuser
IP Rate:	IP 65	Warranty:	3 Years
Duration:	>3 Hours	Usage:	Fire Fighting Safety Emergency
High Light:	exterior emergency lights , 110V emergency light , DIP LED Waterproof Emergency Light

Operation	Non Maintained
Input Voltage	110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current	120mA(Nominal)
Lamp type	15 pcs DIP white LED
Battery	Nickel-Cadmium Battery 3.6V 0.6Ah
Indicator	Red LED Indicates Charging
Duration Time	More than 3 hours
Construction	Fire-Retardant ABS Casing and Plate; PS Diffuser
IP Rate	IP65
Installation	Wall Surface Mounted, Ceiling Surface Mounted
Weight	0.683kg
Working Temperature	-10°C to 55°C
Size	345mm×118mm×80mm Tolerance ±0.03mm
Customization	Battery, Duration Time, Package

Package	1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton
Mater Carton Size	450mm×370mm×260mm
Gross Weight	8.45 kg
Net Weight	6.83 kg

Indicator	Performance	Means Status
Red	Lit	Charging
Green	Lit	Fully charged
	Slow Blink(1Hz)	Manual check mode
	Blink(3Hz)	Automatic monthly self-check mode
	Quick blink(5Hz)	Automatic annual self-check mode
Yellow	Lit	Battery aging, or too short emergency time
	Slow blink(1Hz)	Battery is in short circuit or open circuit
	blink(3Hz)	Wrong connection with lamps or not matchable lamps
Off		Emergency or stop working conditio

Press Time	Indicator Status	Check mode
<1S	No reaction	None. To avoid mistakenly operating
1~3s	Slow blink (1Hz) in green	check mode and discharge for 5 seconds
3~5s	blink(3Hz) in green	monthly self-check mode and discharge for 2 mins
	Quick blink(5Hz) in green	annual self-check mode and discharge for 1 hour
>7s		Stop discharging to recharge again

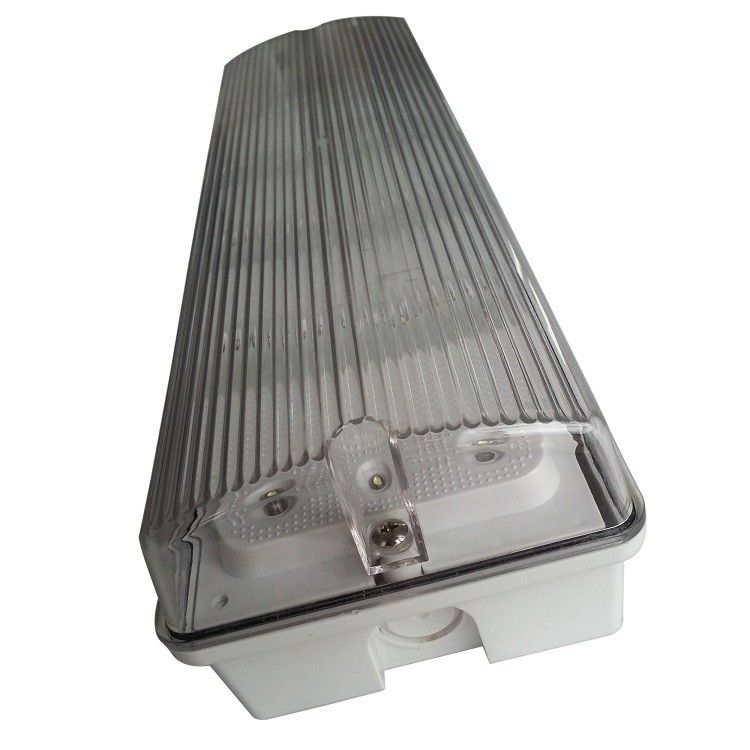

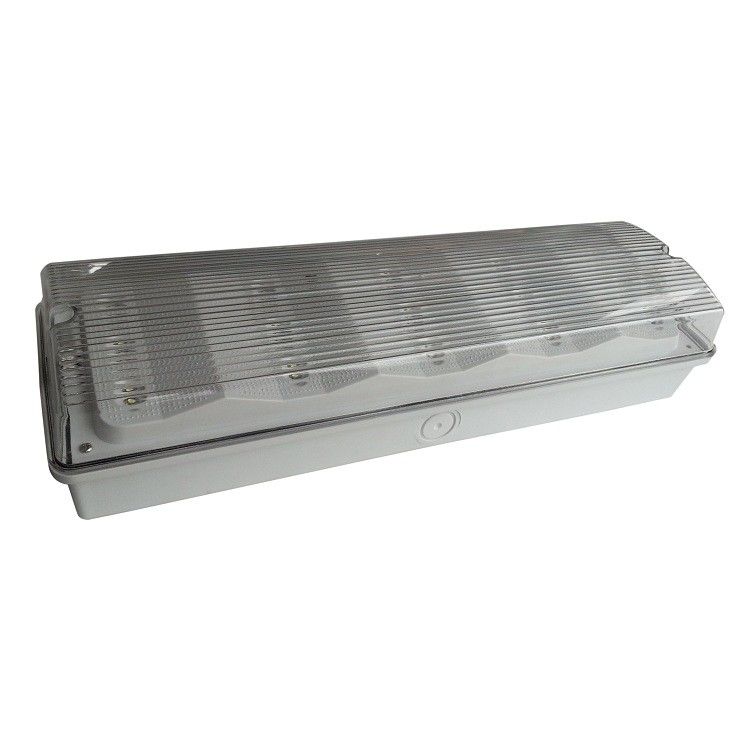

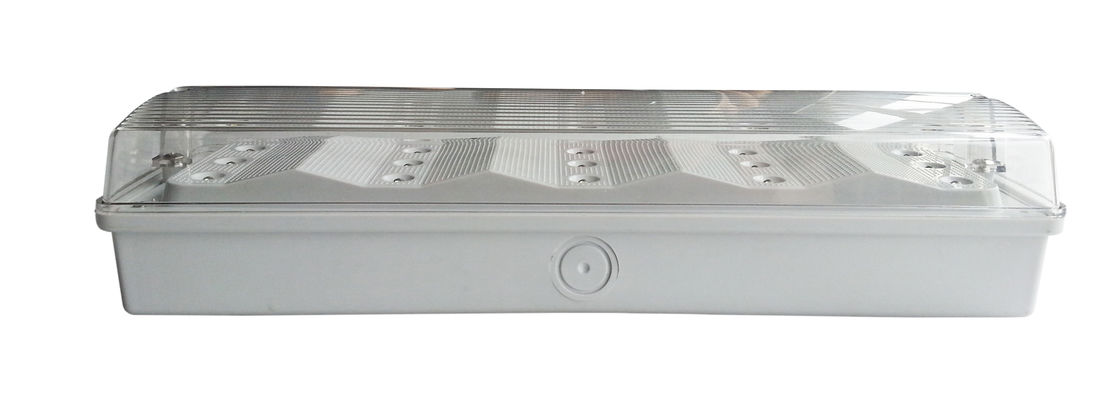

Ceiling Surface Mounted IP65 Waterproof Emergency Light Non Maintained 50Hz / 60Hz

exterior emergency lights
