Wall Recessed LED Automatic Emergency Light Rechargeable

Wall Recessed LED Automatic Emergency Light Rechargeable

Wall Recessed LED Automatic Emergency Light

Rechargeable LED Automatic Emergency Light

SMD LED Rechargeable Emergency Light

Place of Origin:

China

Brand Name:

Zhuiming

Certification:

CE

Model Number:

L116M-C

Contact Us

Request A Quote
Product Details
Operation:
Maintained / Non-maintained
Input Voltage:
220V-240V 50/60Hz
Lamp Type:
3pcs SMD 5730 LED
Battery:
Ni-Cd Battery 3.6V0.6Ah
Duration Time:
More Than 3 Hours
Customization:
Battery, Duration Time, Package
Material:
Fire Resistance ABS Case And Plate, PS Diffuser
IP Rate:
IP20
Installation:
Wall Recessed
Size (mm):
265mmx140mmx105mm
Payment & Shipping Terms
Minimum Order Quantity
300 pcs
Packaging Details
each product has inner box, and 20pcs in one master carton
Delivery Time
38 days after receive the payment
Payment Terms
T/T, L/C
Supply Ability
50,000 pcs per month
Product Description

Product Specification



Operation

Maintained

Input Voltage

220V-240V 50/60Hz

Lamp type

3 pcs SMD 5730 LED

Battery

Ni-Cd battery 3.6V0.6Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.

Weight

0.25 kg

Working Temperature

-10℃ to 55℃

Size

264mm×105mm×50mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package





Package Information

Package

1 Set in 1 Inner Box,50Sets in 1 Outer Carton

Outer Carton Size

580mm×290mm×585mm

Gross Weight

23 kg

Net Weight

21.5kg



Application :

This product is used in all kind of building, when power off, emergency light can lighting automatically. Mainly used in Mall, hotel, office.



Wall recessed

  1. Fix the outer box in the wall.
  2. Use the scissors to cut the trepanning mould on inner box .And make hole first.
  3. Open the product and assemble.(Same as above steps 1-5 of L116N-A, then assemble the frame)
  4. Put the product in the outer box .
  5. Connect the AC power.

Picture:

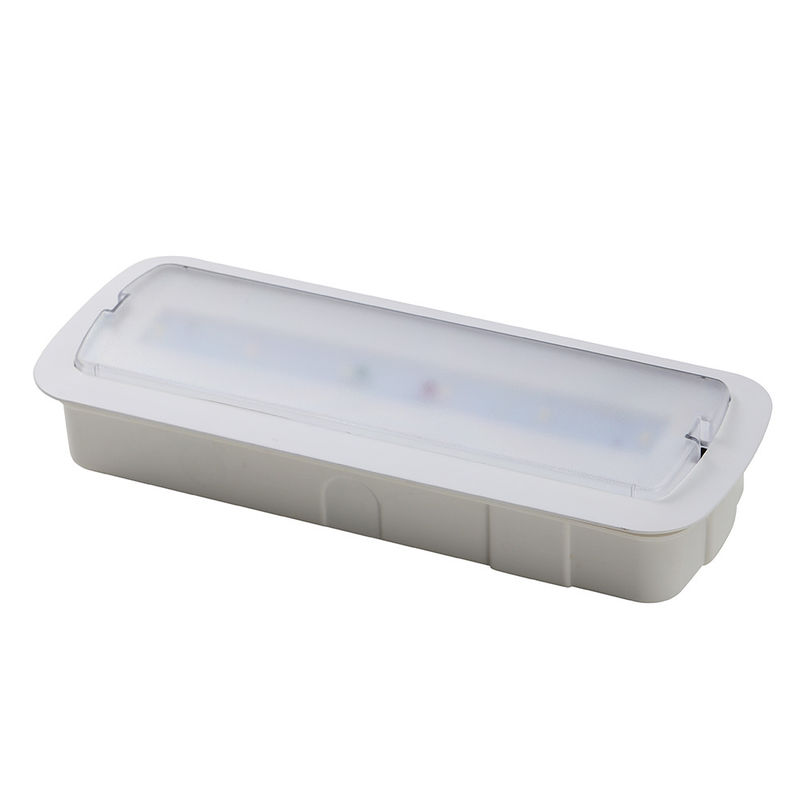

Wall Recessed LED Automatic Emergency Light Rechargeable 0

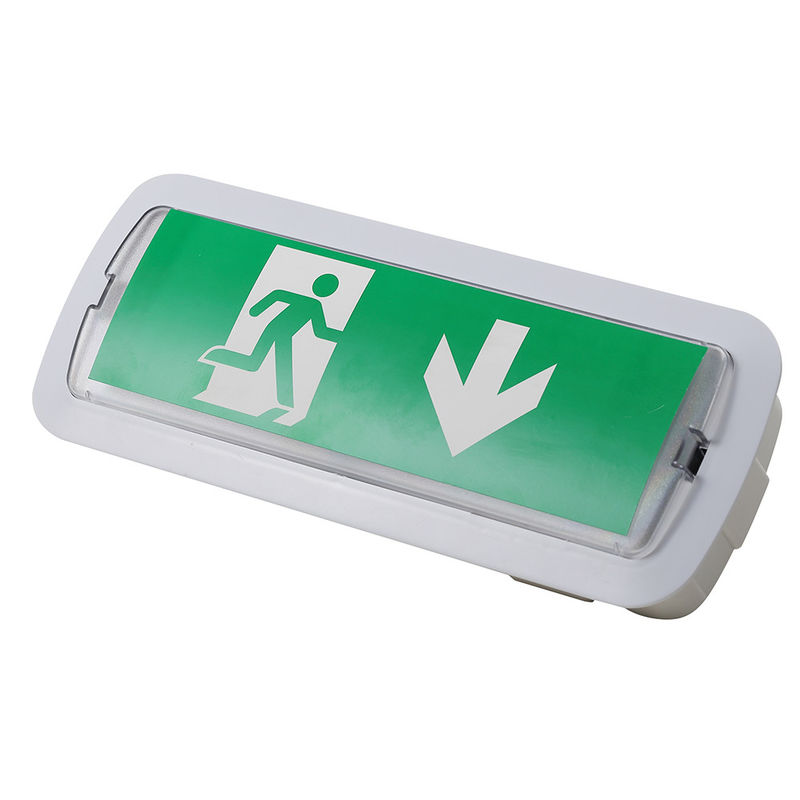

Wall Recessed LED Automatic Emergency Light Rechargeable 1
