CE Certificate LED Battery Rechargeable Emergency Light Power Supply Conversion Kit

CE Certificate LED Battery Rechargeable Emergency Light Power Supply Conversion Kit

Battery Rechargeable Emergency Light Power Supply

Emergency Light Power Supply Conversion Kit

LED Emergency Light Power Supply 40w

Place of Origin:

Zhejiang

Brand Name:

Zhui Ming

Certification:

CE

Model Number:

F355M

Contact Us

Request A Quote
Product Details
Operation:
Maintained
Input Voltage:
110V-240V,50/60Hz
Battery:
Li-ion Battery 14.8V/4.5Ah
Duration Time:
More Than 3 Hours
Indicator:
Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure
Weight:
0.40 Kg
Lamp Type:
1-40w Led Tubes/ Led Panel Lights/ Led Stripes
Payment & Shipping Terms
Minimum Order Quantity
300 sets
Packaging Details
1 set in 1 inner box,20sets in 1 master carton
Delivery Time
20~35 days on receipt of the deposit
Payment Terms
L/C, T/T, Western Union
Supply Ability
3000 sets per day
Product Description

Specification:

Operation

Completely Self-contained

Input Voltage

110V-240V 50/60Hz

Charging Current

200 mA(Nominal)

Lamp type

For All Lamps with Electronic Driver

Battery

Li-ion Battery 14.8V/4.5Ah

Indicator

Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure

Duration Time

More than 3 hours

Construction

Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion
Resistant Epoxy Spray Coating;

Weight

0.40kg

Working Temperature

-10℃ to 55℃

Size

200mm×32mm×35mm (Body)

Customization

Battery, Duration Time, Package



Advantage :

  • Widely used. F355M is widely used. It mainly used to supply power for lamps with self-contained electronic drivers, such as LED tubes, LED down lights, LED spotlights, and LED Bulb Lights and fluorescent lamp with electronic drivers.
  • High quality. F355M is made ​​of high quality electronic components. It has long operating life and low power consumption
  • High-level lithium battery. F355M use the lithium battery which is cost-effective. With 100% output, the brightness does not loss when in illumination condition.
  • F355M can be used build-in or external. Depend on the lamp.
  • ODM. We accept ODM from customers about this conversion kit, now we design 3 kinds: BL10A, BL20A and BL30A.
  • Self-test. (Pls. see instruction as below.)
  • Protect circuit board in battery packs to make safe when battery charging or discharging.

h. Exchange working mode of Permanent and Non-Permanent condition for lamp by connecting wire in different ways. ( Pls. see the connection dirgram on Nameplate. )



Technical parameters:

1) Input voltage: AC220V (± 10%) 50Hz / 60Hz

2) Output power: <30W

3) Emergency converting time ≤3S

4) Emergency time:

Number Lamp type Rated power Battery configuration Emergency time
1 LED tube 11-18W 14.8V/4500mAh 〉3h
2 LED tube 20-30W 14.8V/4500mAh 〉1.5h
3 LED downlight 11-18W 14.8V/4500mAh 〉3h
4 LED downlight 20-25W 14.8V/4500mAh 〉1.5h
5 LED downlight 1-5W 14.8V/2000mAh 〉5h
6 LED downlight 6-10W 14.8V/2000mAh 〉3h
7 LED spotlights 11-18W 14.8V/4500mAh 〉3h
8 LED spotlights 20-25W 14.8V/4500mAh 〉1.5h



Product Show:

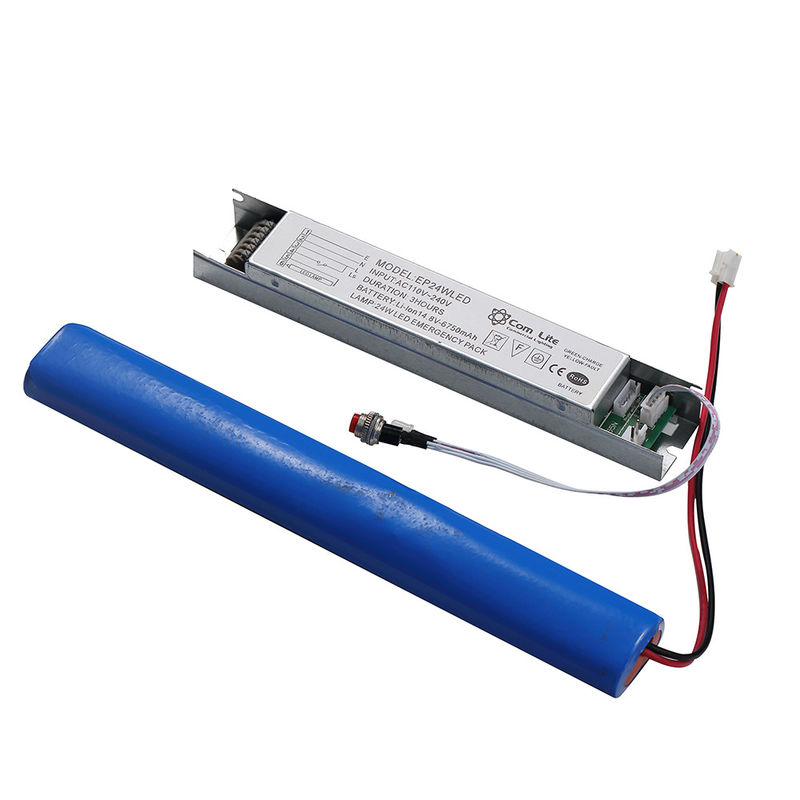

CE Certificate LED Battery Rechargeable Emergency Light Power Supply Conversion Kit 0

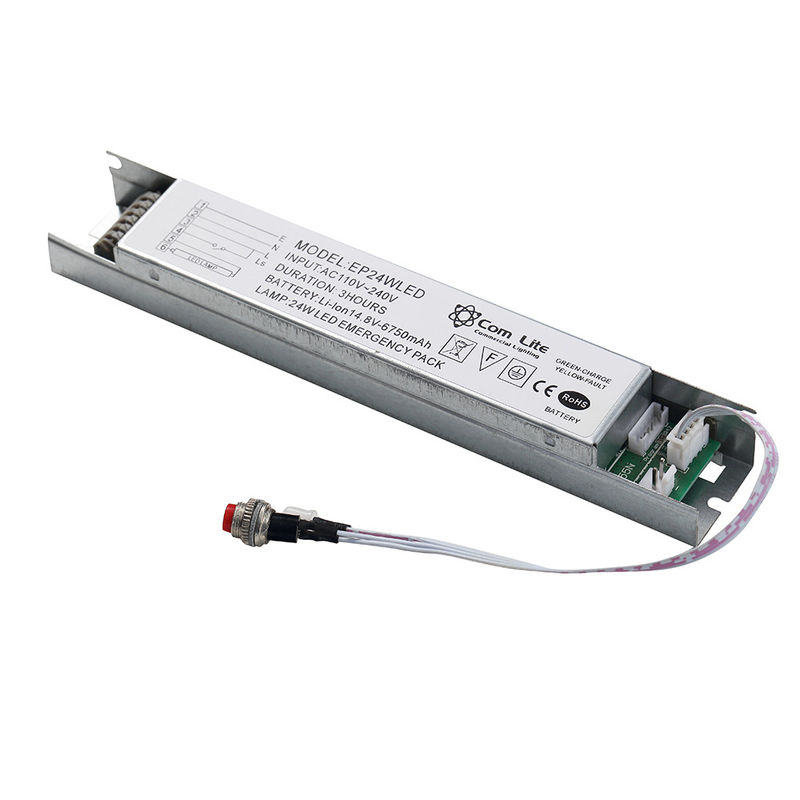

CE Certificate LED Battery Rechargeable Emergency Light Power Supply Conversion Kit 1
