Place of Origin:
zhejiang
Brand Name:
Zhuiming
Certification:
CE RoHS
Model Number:
L116N-A1
Contact Us

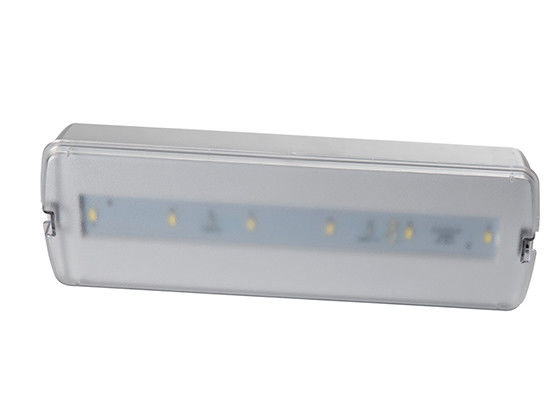

CE Approval Fire-retardant Wall Surface Mounted 3W LED Emergency Light
Parameters:
| Operation | Maintained/Non-maintained |
| Input Voltage | 220V-240V 50/60Hz |
| Charging Current | 120mA(Nominal) |
| Lamp type | 6pcs smd(5730) led |
| Battery Capacity | Ni-Cad, 3.6V/1.8Ah |
| Indicator | Red LED Indicates Charging,Green-AC power |
| Emergency Time | 3h |
| Material | ABS Casing and Plate & PS diffuser |
| Size/ Weight | 238mm×80mm×38mm/0.34kg |
| Working Temperature | -10°C to 55°C |
| Installation | wall surface mounted |
| Customization | Battery, Duration Time, Package |
Installation instructions:
Thisproducthas two installationways,before power connect,pleaseopen itand connect AC wire. Each step as below:

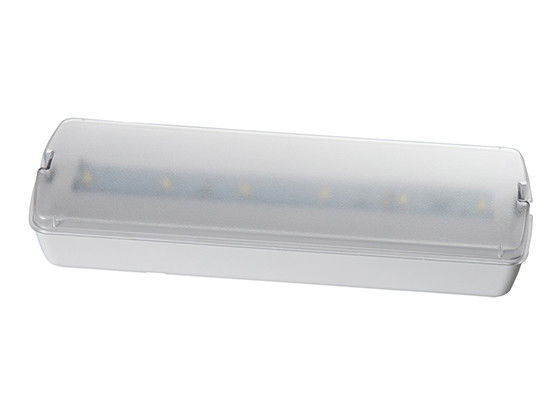

Product Shows:
Installation instructions:
Thisproducthas two installationways,before power connect,pleaseopen itand connect AC wire. Each step as below:
L116N-A1:(Wall surface mounted) 1. Open the product(Pls. use tiny slot type screwdriver or flats tools to tilted product’s surface gap, make the diffuser separate from the bottom case, and take out the middleplate. 2. Use setscrew to fasten the bottom case on the wall. 3. Put AC wire through thebottom case hole, connect the main circuitboard on L,N connect terminal 4. Installthe middleplate.(Make the indicator lampthrough middleplate hold.) 5. Close the diffuser.(Fasten with the bottom case) 6. Connect with the AC power.
