3 Hours Battery Operation LED Rechargeable Emergency Light 5pcs SMD 5730

Product Details:
Place of Origin: China
Brand Name: Zhui Ming
Certification: CE
Model Number: L122MN
Payment & Shipping Terms:
Minimum Order Quantity: 300 PCS
Packaging Details: 1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton
Delivery Time: 35 Days after deposit
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000 PCS/DAY
  • Detail Information
  • Product Description

Detail Information

Operation: Maintained / Non-maintained Lamp Used: 5pcs SMD 5730
Battery: Nickel-Cadmium Construction: Fire-Retardant ABS Casing And Plate; PC Diffuser
IP Rate: IP 65 Warranty: 3 Years
Duration: >3 Hours Usage: Fire Fighting Safety Emergency
Recharge Time: 24h Indicator: Green--charging
High Light:

led light conversion kits


emergency light conversion kit


5pcs SMD 5730 Emergency Light

Product Description


IP65 Waterproof 3 Hours Battery Operation LED Rechargeable Emergency Light

Product Description




Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current


Lamp type

5pcs SMD 5730


Nickel-Cadmium Battery 3.6V 1.0Ah


Red LED Indicates Charging

Duration Time

More than 3 hours


Fire-Retardant ABS Casing and Plate; PS Diffuser

IP Rate



Wall Surface Mounted, Ceiling Surface Mounted



Working Temperature

-10°C to 55°C


Tolerance ±0.03mm


Battery, Duration Time, Package


Packaging & Shipping



1 Set in 1 Inner Carton, 10 Sets in 1 Master Carton

Mater Carton Size


Gross Weight

8.45 kg

Net Weight

6.83 kg



Operating Manual

  • Disconnect the AC power during installation.
  • This product should not be installed in places such as outdoors ,humid and corrosive gas and so on.
  • This product should use the separate loop-powered circuit.It should not share circuit with lighting or other electrical equipment (with a switch), in order to ensure this LED emergency Ceiling light can be recharged normally.
  • To ensure the product operating normally,it should be checked regularly.
  • The products have been discharged before leaving the factory.So it needs to be charged 24 hours when used .
  • If the product is in storage or not use for a long time, it should be charged and discharged once every three months, in order to protect the battery performance.
  • Please keep this manual.


Non-maintained Condition:

When there is power ON,the lamp is off .And it is charging ,the Green LED indicator is on . The emergency light will light on 180 minutes when there is power off , meanwhile the Green LED indicator is off .

Maintained Condition:

When there is AC power ON,the lamp is ON , it is charging ,and the Green LED Indicator also is on .When there is AC power OFF, the lamp will go on about 180 minutes, and the Green LED indicator is OFF.


Product Show:

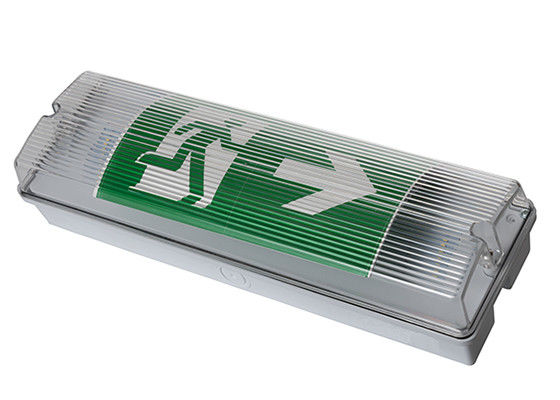

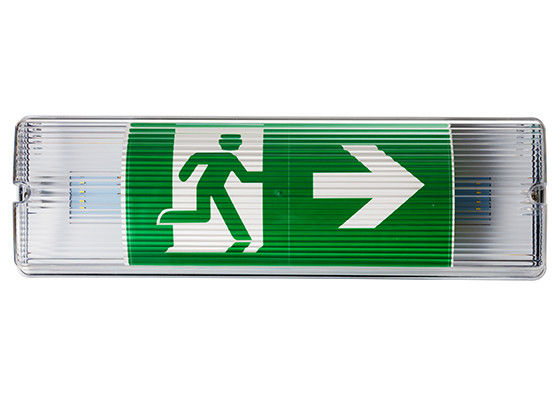

3 Hours Battery Operation LED Rechargeable Emergency Light 5pcs SMD 5730 0
