China Waterproof Emergency Light manufacturer

Small Size SMD Indoor LED Rechargeable Emergency Light With Frosted Cover

Product Details:
Place of Origin: zhejiang
Brand Name: Zhuiming
Certification: CE RoHS
Model Number: L116N-A1
Payment & Shipping Terms:
Minimum Order Quantity: 300
Packaging Details: 1 set in 1 Inner Carton, 50 sets in 1 Master Carton
Delivery Time: 45days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month
Contact Now

Detail Information

Bulb Type: LED Battery Type: Ni-Cd
Material: Fire-Retardant ABS Casing And Plate Usage: Lighting For Shopping Mall, Office Building
Certification: CE Specifications: 6 Pcs SMD 5730 LED
Operation: Non-maintain Warrange: 3 Years
Duration Time: >3 Hrs Installation: Wall Surface Mounted
IP Rate: IP20

Product Description



Small Size Wall Surface Mounted Rechargeable LED Emergency Light



Product Description:

Parameters:



Parameters

Operation Maintained/Non-maintained
Input Voltage 220V-240V 50/60Hz
Charging Current 120mA(Nominal)
Lamp type 6pcs smd(5730) led
Battery Capacity Ni-Cad, 3.6V/1.8Ah
Indicator Red LED Indicates Charging,Green-AC power
Emergency Time 3h
Material ABS Casing and Plate & PS diffuser
Size/ Weight 238mm×80mm×38mm/0.34kg
Working Temperature -10°C to 55°C
Installation wall surface mounted
Customization Battery, Duration Time, Package





Product feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,our emergency light has high lumens,long lifetime, and lowenergy dissipation feature.



Function:

Over 3hrs emergency lighting after sudden blackout



Application:

For shopping malls, office buildings,government buildings, teaching buildings, residential buildings, hospitals, dormitories and so on.



Certificate:

Our products are guaranteed by CE and RoHS

Product Shows:

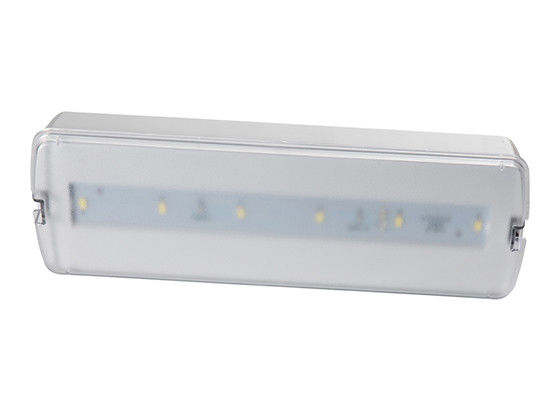

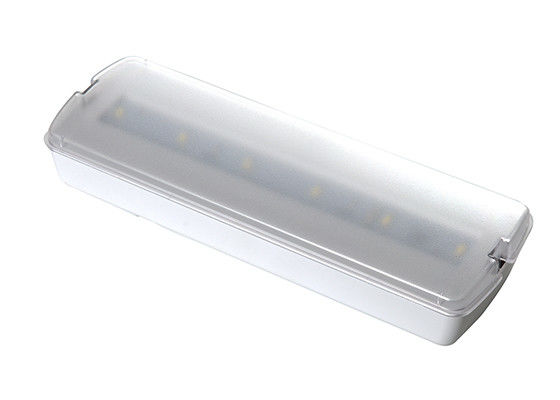

Small Size SMD Indoor LED Rechargeable Emergency Light With Frosted Cover

Small Size SMD Indoor LED Rechargeable Emergency Light With Frosted Cover

Installation instructions:

Thisproducthas two installationways,before power connect,pleaseopen itand connect AC wire. Each step as below:
L116N-A1:(Wall surface mounted) 1. Open the product(Pls. use tiny slot type screwdriver or flats tools to tilted product’s surface gap, make the diffuser separate from the bottom case, and take out the middleplate. 2. Use setscrew to fasten the bottom case on the wall. 3. Put AC wire through thebottom case hole, connect the main circuitboard on L,N connect terminal 4. Installthe middleplate.(Make the indicator lampthrough middleplate hold.) 5. Close the diffuser.(Fasten with the bottom case) 6. Connect with the AC power.



Delivery Time

  • 45 days on receipt of your payment
