China Waterproof Emergency Light manufacturer

Rechargeable Emergency Battery Power Pack Led Conversion Kit Long Life Time

Product Details:
Place of Origin: Zhejiang
Brand Name: Zhui Ming
Certification: CE
Model Number: F355M
Payment & Shipping Terms:
Minimum Order Quantity: 300 sets
Packaging Details: 1 set in 1 inner box,20sets in 1 master carton
Delivery Time: 20~35 days on receipt of the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets per day
Contact Now

Detail Information

Operation: Maintained Input Voltage: 110V-127V,50/60Hz, 220V-240V,50/60Hz
Battery: Li-ion Battery 14.8V/2.25Ah Duration Time: More Than 3 Hours
Indicator: Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure Weight: 0.40 Kg

Product Description



3 Hours Operation Rechargeable Emergency Battery Power Pack Conversion Kit





Specification:

Operation

Completely Self-contained

Input Voltage

220V-240V 50/60Hz

Charging Current

200 mA(Nominal)

Lamp type

For All Lamps with Electronic Driver

Battery

Li-ion Battery 14.8V/2.25Ah

Indicator

Red LED - Charging,Green LED - Full Charging,Yellow LED - Battery Failure

Duration Time

More than 3 hours

Construction

Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion
Resistant Epoxy Spray Coating;

Weight

0.40kg

Working Temperature

-10℃ to 55℃

Size

200mm×32mm×35mm (Body)

Customization

Battery, Duration Time, Package



Advantage :

  • Widely used. F355M is widely used. It mainly used to supply power for lamps with self-contained electronic drivers, such as LED tubes, LED down lights, LED spotlights, and LED Bulb Lights and fluorescent lamp with electronic drivers.
  • High quality. F355M is made ​​of high quality electronic components. It has long operating life and low power consumption
  • High-level lithium battery. F355M use the lithium battery which is cost-effective. With 100% output, the brightness does not loss when in illumination condition.
  • F355M can be used build-in or external. Depend on the lamp.
  • ODM. We accept ODM from customers about this conversion kit, now we design 3 kinds: BL10A, BL20A and BL30A.
  • Self-test. (Pls. see instruction as below.)
  • Protect circuit board in battery packs to make safe when battery charging or discharging.

h. Exchange working mode of Permanent and Non-Permanent condition for lamp by connecting wire in different ways. ( Pls. see the connection dirgram on Nameplate. )



Technical parameters:

1) Input voltage: AC220V (± 10%) 50Hz / 60Hz

2) Output power: <30W

3) Emergency converting time ≤3S

4) Emergency time:

Number Lamp type Rated power Battery configuration Emergency time
1 LED tube 11-18W 14.8V/4500mAh 〉3h
2 LED tube 20-30W 14.8V/4500mAh 〉1.5h
3 LED downlight 11-18W 14.8V/4500mAh 〉3h
4 LED downlight 20-25W 14.8V/4500mAh 〉1.5h
5 LED downlight 1-5W 14.8V/2000mAh 〉5h
6 LED downlight 6-10W 14.8V/2000mAh 〉3h
7 LED spotlights 11-18W 14.8V/4500mAh 〉3h
8 LED spotlights 20-25W 14.8V/4500mAh 〉1.5h

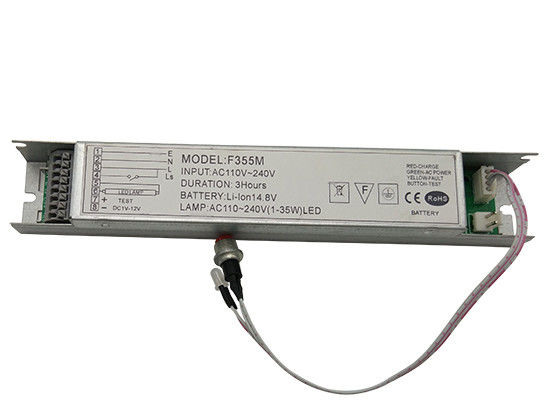

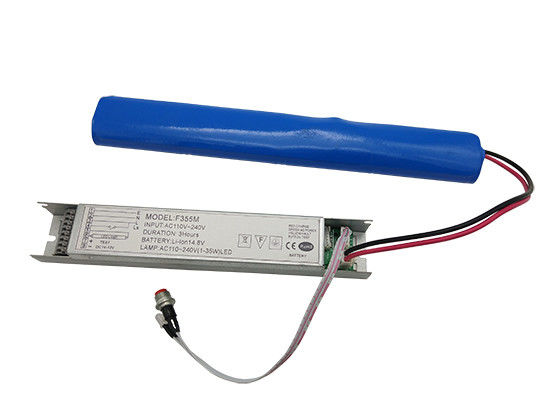

Product Show:

Rechargeable Emergency Battery Power Pack Led Conversion Kit Long Life Time
