China Waterproof Emergency Light manufacturer

Indoor 220V Wall Recessed Standby Building Emergency Lights With 3 Hours Operation

Product Details:
Place of Origin: China
Brand Name: Zhuiming
Certification: CE
Model Number: L116M-C
Payment & Shipping Terms:
Minimum Order Quantity: 300 pcs
Packaging Details: each product has inner box, and 20pcs in one master carton
Delivery Time: 45 days on receipt of payment
Payment Terms: T/T, L/C
Supply Ability: 50,000 pcs per month
Contact Now

Detail Information

Operation: Maintained Condition Input Voltage: 110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current: 60mA Lamp Type: 3pcs SMD 5730 LED
Battery: Ni-Cd Battery 3.6V 0.6Ah Duration Time: More Than 3 Hours
Customization: Battery, Duration Time, Package Material: Fire Resistance ABS
Indicator Red: Charging Indicator Green: AC Power
Extra Function: Self Testing

Product Description



Permanent / Non-permanent Wall Recessed Industrial Led Emergency Light





Product Specification



Operation

Maintained / Non-maintained

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

60mA

Lamp type

6pcs SMD 5730 LED

Battery

Ni-Cd battery 3.6V1.8Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.

Weight

0.42 kg

Working Temperature

-10℃ to 55℃

Size

262mm×100mm×46mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package





Package Information

Package

1 Set in 1 Inner Box,50Sets in 1 Outer Carton

Outer Carton Size

490mm×275mm×565mm

Gross Weight

25 kg

Net Weight

23kg



Application :

This product is used in all kind of building, when power off, emergency light can lighting automatically. Mainly used in Mall, hotel, office.

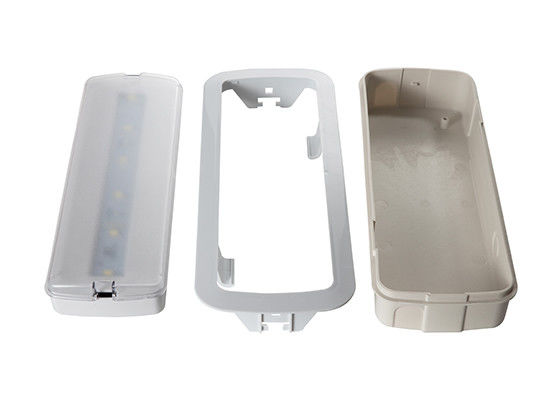

Wall recessed

  1. Fix the outer box in the wall.
  2. Use the scissors to cut the trepanning mould on inner box .And make hole first.
  3. Open the product and assemble.(Same as above steps 1-5 of L116N-A, then assemble the frame)
  4. Put the product in the outer box .
  5. Connect the AC power.

Picture:

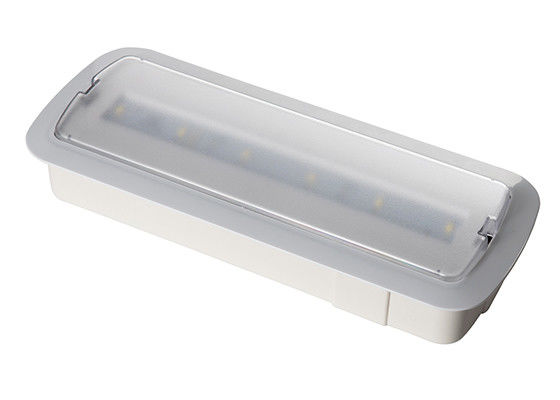

Indoor 220V Wall Recessed Standby Building Emergency Lights With 3 Hours Operation
