China Waterproof Emergency Light manufacturer

Non Maintain 200Lm Ceiling Recessed Emergency Light Led Illumination Light

Product Details:
Place of Origin: China
Brand Name: Zhuiming
Certification: CE
Model Number: L116M-B
Payment & Shipping Terms:
Minimum Order Quantity: 300 pcs
Packaging Details: each product has inner box, and 50pcs in one master carton
Delivery Time: 45 days on receipt of your payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50,000 pcs per month
Contact Now

Detail Information

Operation: Maintained Condition Input Voltage: 220V-240V 50/60Hz
Charging Current: 60mA Lamp Type: 6pcs SMD 5730 LED
Battery: Ni-Cd Battery 3.6V1.8Ah Duration Time: More Than 3 Hours
Customization: Battery, Duration Time, Package Material: Fire Resistance ABS
Indicator Red: Charging Indicator Green: AC Power
Extra Function: Self Testing

Product Description

200Lm Ceiling Recessed Battery Powered Emergency Led Illumination Light



Product Specification



Operation

Non maintain

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

60mA

Lamp type

6 pcs SMD 5730 LED

Battery

Ni-Cd battery 3.6V1.8Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.

Weight

0.34 kg

Working Temperature

-10℃ to 55℃

Size

262mm×100mm×46mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package



Package Information

Package

1 Set in 1 Inner Box,50Sets in 1 Outer Carton

Outer Carton Size

490mm×275mm×565mm

Gross Weight

23 kg

Net Weight

21.5kg

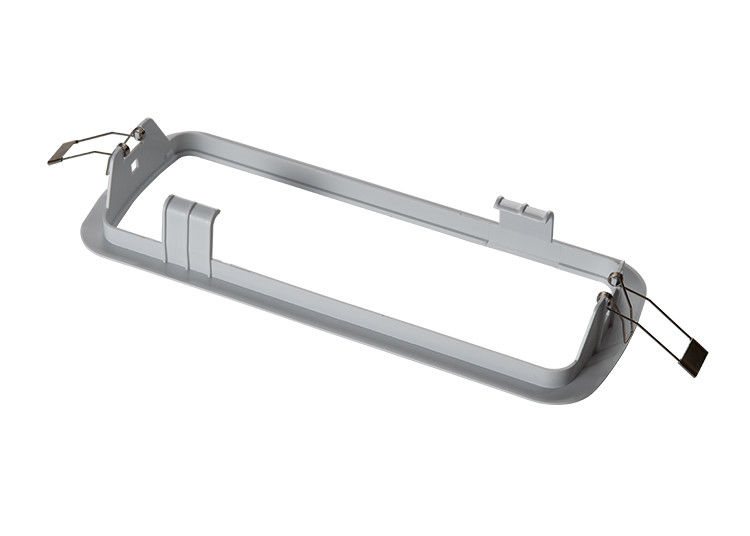

Ceiling Recessed Mounted

  • Use the scissors to cut the trepanning mould on inner box and make hole first.
  • Open the product and assemble.(Same as above steps 1-5 of L116N-A, then assemble the frame)
  • Put the spring on product.
  • Put the product on the wall.
  • Connect the AC power.

Instruction for use:

  • Before installation, cut off the AC power.
  • Don’t installation this product in outer door, moist and corrosive gas environment .
  • Use single circuit, do not connect with other lights, to make sure emergency normal recharging.
  • Regular checking to make sure working condition is correct.
  • When left factory ,the product is discharging, when using pls. recharging in 24 hours, to meet the rated duration time.
  • When long-term storage or out of service, pls. discharge one time for each three months to keep battery’s performance.

Product Show:



Non Maintain 200Lm Ceiling Recessed Emergency Light Led Illumination Light

Non Maintain 200Lm Ceiling Recessed Emergency Light Led Illumination Light
