AC Power Ceiling Emergency Light SMD 5730 LED

Product Details:
Place of Origin: China
Brand Name: Zhuiming
Certification: CE
Model Number: L116N-B1
Payment & Shipping Terms:
Minimum Order Quantity: 300 pcs
Packaging Details: each product has inner box, and 20pcs in one master carton
Delivery Time: 35days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50,000 pcs per month

Detail Information

Operation: Maintained / Non-maintianed Input Voltage: 110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current: 60mA Lamp Type: 6pcs SMD 5730 LED
Battery: Ni-Cd Battery 3.6V1.8Ah Duration Time: More Than 3 Hours
Customization: Battery, Duration Time, Package Material: Fire Resistance ABS
Indicator Red: Charging Indicator Green: AC Power
Extra Function: Self Testing
High Light:

non maintained emergency lighting

,

exterior emergency lights with battery backup

,

AC Power Ceiling Emergency Light

Product Description

Ceiling Recessed 3 Years Warranty Battery Built-in LED Emergency Escape Lighting



Emergency light technical parameters:

  • Input Voltage:AC 220V-240V 50Hz/60Hz
  • Lamp type : 6 pcs 5730 SMD LED
  • Duration time :≥180 mins
  • Switching time:≤1 S
  • Luminous flux :>200LM

Product Specification



Operation

Non maintain

Input Voltage

110V-127V 50/60Hz;220V-240V 50/60Hz

Charging Current

60mA

Lamp type

6pcs SMD 5730 LED

Battery

Ni-Cd battery 3.6V1.8Ah

Indicator

Green LED--AC power on,Red LED--charging

Duration Time

More than 3 hours

Construction

Fire-Retardant ABS Casing ,Plate and Frame;PS Diffuser.

Weight

0.25 kg

Working Temperature

-10℃ to 55℃

Size

262mm×100mm×46mm

Tolerance±0.03mm

Customization

Battery, Duration Time, Package





Package Information

Package

1 Set in 1 Inner Box,50Sets in 1 Outer Carton

Outer Carton Size

490mm×275mm×565mm

Gross Weight

23 kg

Net Weight

21.5kg



Application :

This product is used in all kind of building, when power off, emergency light can lighting automatically. Mainly used in Mall, hotel, office.



Product feature:

This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,So our emergency light has high lumens,long lifetime, and low energy dissipation feature.



Wall recessed mounted

  • Use the scissors to cut the trepanning mould on inner box and make hole first.
  • Open the product and assemble.(Same as above steps 1-5 of L116N-A, then assemble the frame)
  • Put the spring on product.
  • Put the product on the wall.
  • Connect the AC power.



Picture:

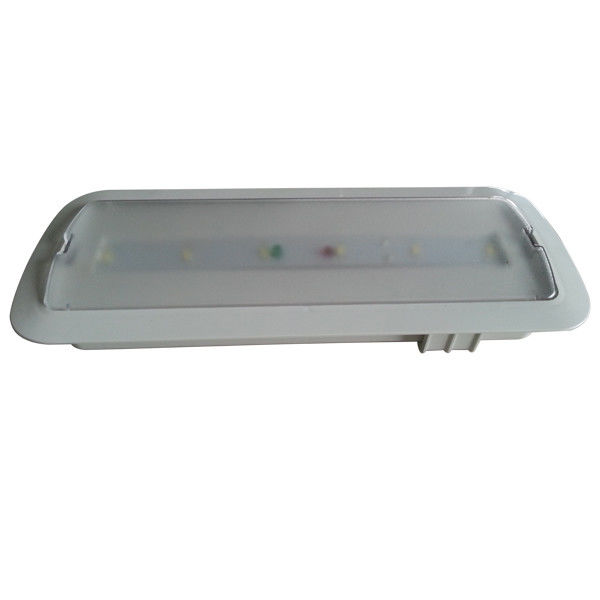

AC Power Ceiling Emergency Light SMD 5730 LED 0

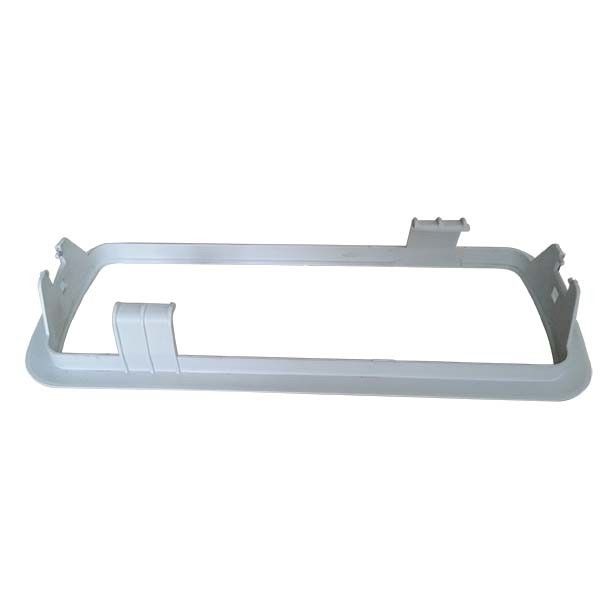

AC Power Ceiling Emergency Light SMD 5730 LED 1

L116N-B:Wall recessed mounted:

  • Use the scissors to cut the trepanning mould on inner box and make hole first
  • Open the product and assemble.(Same as above steps 1-5 of L116N-A, then assemble the frame)
  • Put the spring on product
  • Put the product on the wall
  • Connect the AC power
